Exhaust reducer vs expander: difference and fitment
An exhaust reducer shrinks one pipe to fit a smaller one; an expander does the opposite, so match the part to the pipe sizes you measure, not the part name. Get it wrong and the joint leaks, rattles, or will not clamp evenly. This guide shows how to identify reducer vs expander by pipe diameter, end style, and fitment for common car and truck exhaust repairs.
| Decision factor | Exhaust reducer | Expander | Winner |
|---|---|---|---|
| Pipe-size direction | Best for larger-to-smaller transitions | Best for smaller-to-larger transitions | Depends on the measured ends |
| Fitment clarity in catalogs | Often labeled as reducer, connector, or coupler | Often described as the reverse of a reducer | Reducer |
| Clamp-on slip-fit use | Common when the existing pipe is the larger side | Common when the existing pipe is the smaller side | Depends on the pipe end you already have |
| Weld-on versatility | Available in multiple end configurations | Available in multiple end configurations | Tie |
| Horizontal-run handling | Can be concentric or eccentric | Can be concentric or eccentric | Tie |

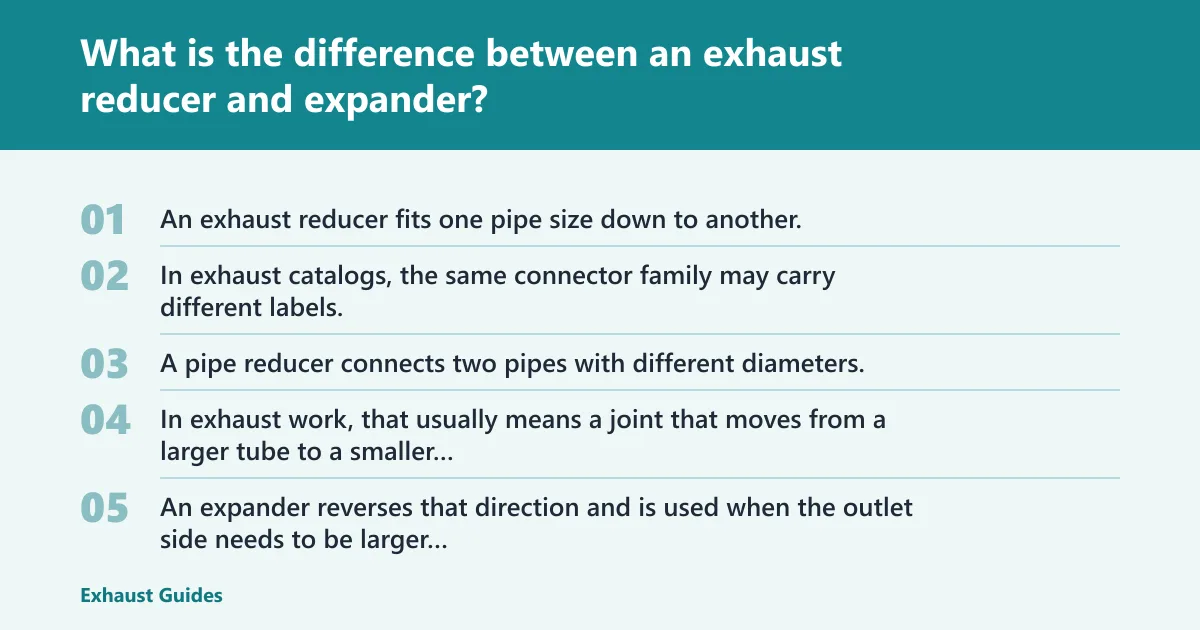

What is the difference between an exhaust reducer and expander?
An exhaust reducer fits one pipe size down to another, while an expander does the opposite and moves from a smaller pipe to a larger one. In exhaust catalogs, the same connector family may carry different labels, so the real question is which end sizes and fit style your pipes need.
Reducer and expander are opposite directions
A pipe reducer connects two pipes with different diameters. In exhaust work, that usually means a joint that moves from a larger tube to a smaller tube. An expander reverses that direction and is used when the outlet side needs to be larger than the pipe you already have.
TruckPipesUSA lists reducers and expanders as categories, which shows sellers treat them as paired fitment choices. The label alone does not tell you whether the part will slide over, slip inside, clamp on, or weld on.
Why catalogs use different names for similar parts
Some sellers describe the same fitting as a reducer, connector, or coupler because the part joins dissimilar exhaust pipe sizes. That overlap is common. Read the end style first, then match the direction of the size change.
📊 ASME B16.11 is the applicable dimensional standard for screwed reducers. Source: Pipe Reducers: Concentric Reducers, Eccentric Reducers, Differences….

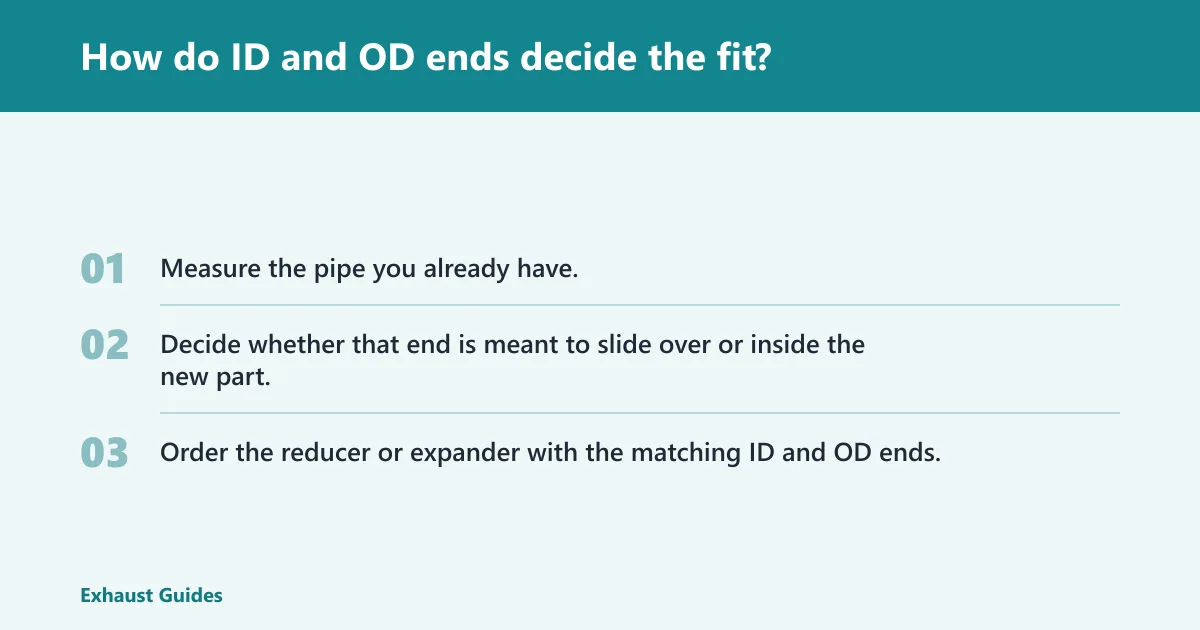

How do ID and OD ends decide the fit?
ID and OD tell you which side goes inside the other. ID is the inside diameter, the female end, and it receives the OD end. OD is the outside diameter, the male end, and it slips inside an ID end. That direction decides whether you need ID-to-OD or OD-to-ID.
Use the end that matches the pipe you already have
An ID to OD reducing exhaust connector joins two different sized pipes together. The seller may describe the part as having a male OD or female ID end. If the existing pipe is the male side, you need a female receiver. If it is the female side, you need a male insert.
Simple direction rule
- Measure the pipe you already have.
- Decide whether that end is meant to slide over or inside the new part.
- Order the reducer or expander with the matching ID and OD ends.
Say your existing exhaust tip is a 2-inch OD slip tube and the replacement muffler inlet is a 2.25-inch ID receiver. You need a part that accepts the 2-inch OD on one side and presents the correct larger end on the other side. If you reverse that logic, the joint will either be loose or impossible to seat.
Is an exhaust reducer the same as a connector or coupler?
Sometimes, yes. In exhaust listings, reducer, connector, and coupler can point to the same kind of joining part when the seller is describing pipe-end fitment rather than a strict plumbing standard. The end style matters more than the word used in the listing.
When the names mean the same thing
A reducer may be sold as a connector when it simply joins two different sized exhaust pipes. A coupler may also appear in the same role when the part is meant to bridge a size change and create a serviceable joint. The functional test is whether the ends match your pipe ID and OD.
When the names do not mean the same thing
In piping standards, a reducer can have a specific geometry or end connection. A butt-welded reducer joins by welding, a socket welded reducer uses socket ends, a screwed reducer uses threads, and a flanged reducer uses flanges. Those terms describe the connection method, not just the size transition.

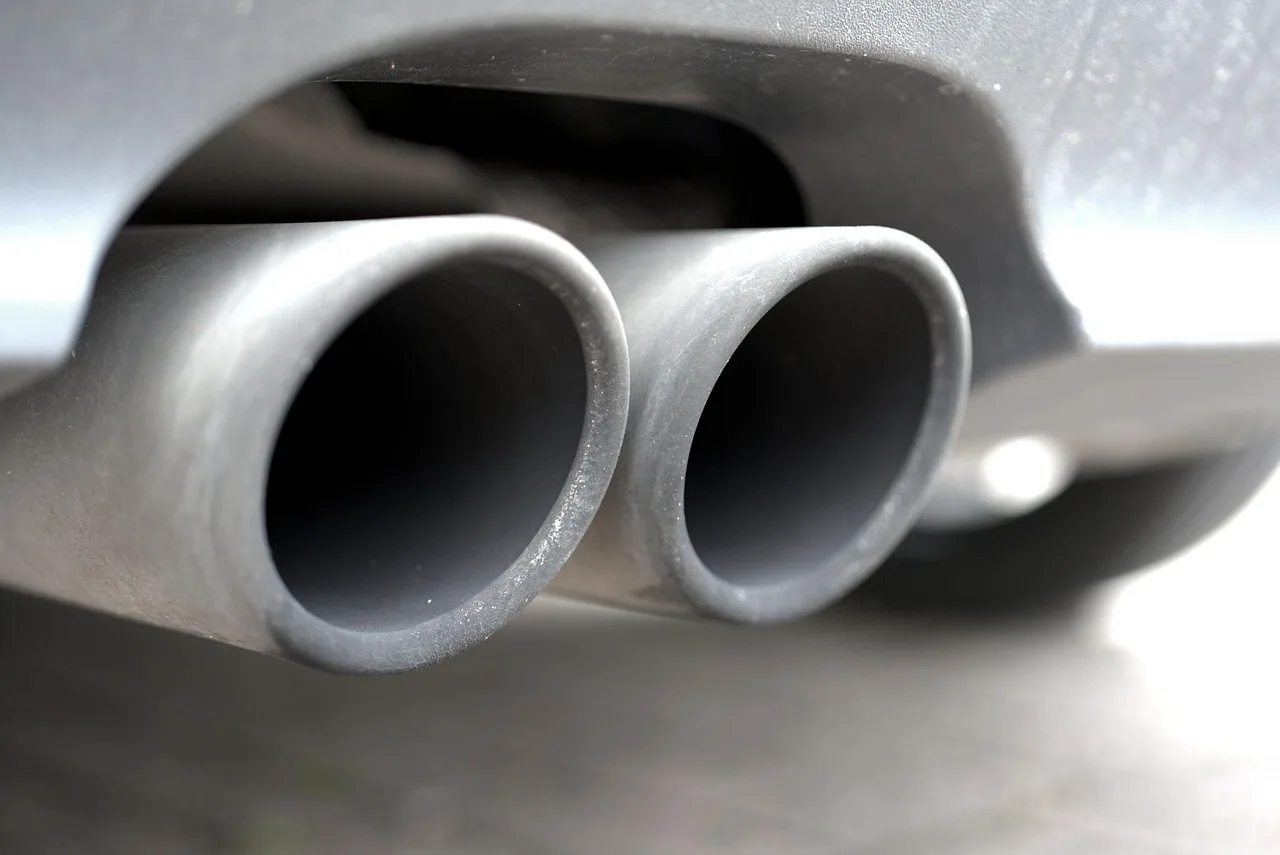

When do you need a reducer vs an expander on a car or truck?
You need a reducer when the exhaust path has to step from a larger pipe to a smaller one, and an expander when the path has to grow from smaller to larger. On cars and trucks, that choice usually comes from the replacement part you are joining, not from the vehicle brand or model.
Slip-fit repairs
Slip-fit exhaust joints depend on diameter direction. If the new pipe needs to slide over the existing pipe, you are dealing with an OD-in-ID style joint. If the new pipe has to go inside the existing pipe, the direction flips. Wrong direction means a loose joint or a pipe that will not seat far enough for the clamp.
Clamp-on repairs
Clamp-on joints make size errors more visible. A clamp cannot correct a bad ID and OD match, and it cannot fix a reducer that is one side too small or too large. A poor slip fit often shows up as a leak at the clamp band or as a joint that shifts under vibration.
Weld-on repairs
Weld-on exhaust repairs still depend on the correct transition part. The reducer or expander must match the wall thickness and the outside profile well enough to give a sound weld prep. A size mismatch here can leave a step inside the flow path or a weak edge at the weld.
A common first-timer mistake is ordering a reducer only by nominal diameter and ignoring the end style. The part may be the right size on paper and still be wrong at the bench because the existing tube is a slip-fit OD end while the new part is built as an ID receiver.
What is the difference between concentric and eccentric exhaust reducers?
Concentric reducers keep the pipe axis the same. Eccentric reducers have an offset between centerlines, so one side stays flatter while the other side changes diameter. Both are reducer types, but they solve different routing problems on exhaust and piping runs.
Centerline alignment vs offset geometry
A concentric reducer has a symmetrical cone shape and is used when the line should stay centered. An eccentric reducer moves the centerline and is chosen when one side needs to stay clear of a frame rail, floor pan, or another component.
Flat side up or down on horizontal runs
Eccentric reducers can be installed with the flat side up or down. For horizontal gas, steam, or vapor piping, flat side down is preferred. Pump suction lines use eccentric reducers with the flat side up. For exhaust, the same geometry is useful when clearance or condensate path matters on a horizontal run.
Picture a horizontal exhaust section that passes close to a crossmember. A concentric reducer centers the tube, which may not leave enough space. An eccentric reducer shifts the pipe centerline and can give you the clearance you need without changing the target diameter.
| Reducer type | Centerline | Common use | Orientation note |
|---|---|---|---|
| Concentric reducer | Same axis | Vertical lines and centered transitions | No offset choice |
| Eccentric reducer | Offset centerlines | Horizontal runs, clearance-sensitive routing | Flat side up or down |
Do exhaust reducers come in different end styles?
Yes. Exhaust reducers and related piping reducers come in several end styles, and the end style is part of the fitment decision. Butt-welded, socket welded, screwed, and flanged are common connection types in piping standards, and the same logic helps when you compare exhaust connector parts.
Butt-welded reducer
A butt-welded reducer is an end connection type used in piping standards and joins via welding. It is chosen when the pipe ends are prepared for a welded transition rather than a slip joint or clamp band.
Socket welded reducer
Socket welded reducers are available in concentric type only. That matters because the geometry and the socket ends are paired, so you cannot treat every reducer shape as interchangeable with this end style.
Screwed reducer
A screwed reducer uses a threaded connection. ASME B16.11 is the applicable dimensional standard for screwed reducers, so thread form and size matching are part of the decision. This is not the same as a plain slip-fit exhaust sleeve.
Flanged reducer
A flanged reducer is used in piping systems where flange faces bolt together. Face-to-face dimensions matter here. If those dimensions are off, the flanges will not line up correctly, even if the nominal pipe size looks right on paper.
How do I measure exhaust pipe ends before buying a reducer?
Measure the pipe end, not the part name on the box. You need to know whether the existing end is ID or OD, then compare the size change and wall thickness against the reducer or expander listing. A loose slip fit, a tight mismatch, or the wrong wall thickness will cause problems at assembly.
No-tools visual measuring guide
- Look at the pipe end from the side. If the tube end wraps around another pipe, that is the female ID side.
- Look at the pipe end from the outside. If the tube end slides inside a receiver, that is the male OD side.
- Compare the outside width of the pipe to the inside opening of the mating part by sight and fit direction.
- Check wall thickness by noting how much metal sits between the inner opening and outer edge.
- Confirm whether the joint is slip-fit, clamp-on, or weld-on before ordering.
What goes wrong when the measurement is off
Wrong-size reducers cause obvious fit failures. Loose slip fits can rattle and may leak. A reducer with the wrong wall thickness may fit the diameter on paper but sit too shallow or leave poor clamp contact. Those are ordering errors, not installation mysteries.
Use this fitment checklist before you buy
Start with the pipe end, then choose the part. This checklist gives you the order of operations that avoids most exhaust fitment errors. The right reducer or expander is the one that matches the measured ends, the size direction, and the joint style.
One-page exhaust fitment checklist
| Existing pipe end type | Target pipe size change | Recommended part type |
|---|---|---|
| OD slip-fit end | Larger to smaller | Exhaust reducer with matching ID receiver |
| OD slip-fit end | Smaller to larger | Exhaust expander with matching OD receiver |
| ID clamp-on end | Larger to smaller | Reducer with OD lead-in that seats inside the ID end |
| ID clamp-on end | Smaller to larger | Expander with OD growth that fits the larger receiver |
| Weld-on end | Any transition that needs welding | Butt-welded reducer or welded expander-style connector |
| Flange or threaded piping end | Any transition in a standard piping system | Flanged reducer or screwed reducer, matched to the standard |
Quick order check
- Confirm the end is ID or OD.
- Confirm whether the transition is larger-to-smaller or smaller-to-larger.
- Choose slip-fit, clamp-on, or weld-on based on the joint you already have.
- Choose concentric if you want the centerline unchanged.
- Choose eccentric if you need offset clearance or horizontal-run control.
Choose exhaust reducer if…
Choose an exhaust reducer if your measured joint goes from larger to smaller and the existing pipe end matches the reducer’s ID and OD layout. Choose an expander if the direction is smaller to larger. If the run is horizontal and needs offset clearance, move from concentric to eccentric only after the size direction is correct.
Use this order: size direction first, end style second, geometry third. If the part name does not match your measured ends, do not force it. A reducer that fits the wrong side is still the wrong part.
Frequently asked questions
What is the difference between an exhaust reducer and an expander?
An exhaust reducer goes from a larger pipe to a smaller pipe, while an expander goes from a smaller pipe to a larger one. Catalogs sometimes use connector language loosely, so the safest way to choose is to measure the existing pipe ends and follow the size direction, not the label alone.
How do I know if I need ID to OD or OD to ID?
ID means inside diameter and is the female end. OD means outside diameter and is the male end. If your existing pipe slides inside the new part, you need an ID receiver. If the new part must slide inside the existing pipe, you need an OD receiver.
Can I use a reducer on a larger-to-smaller exhaust joint?
Yes. That is the normal use for a reducer. The key is to match the reducer’s end style to the existing exhaust end, because a reducer that is the right diameter but the wrong ID or OD orientation will not seat correctly and can leak at the clamp or weld.
Are exhaust reducers reversed to make expanders?
Sometimes people describe expanders as reducers used in reverse, but that is only true when the end style and geometry support the swap. Do not assume every reducer can become an expander. Check the ID, OD, and whether the part is concentric, eccentric, welded, threaded, or flanged.
What is the difference between concentric and eccentric exhaust reducers?
Concentric reducers keep the pipe axis the same, so the transition stays centered. Eccentric reducers have offset centerlines and can be installed flat side up or down. For horizontal routing, that offset matters when you need clearance, drainage control, or a specific pipe position.
How do I measure exhaust pipe ends before buying a reducer?
Look at the pipe end and identify whether it is ID or OD. Then compare the existing size to the target size and note wall thickness by how much metal sits between the inner opening and the outer edge. That quick check helps prevent loose slip fits and wrong-size orders.
