Egr Valve vs Egr Cooler
The egr valve meters exhaust gas into the intake; the egr cooler lowers exhaust temperature before that flow reaches the valve, so the failed part is usually the one tied to the specific fault code, leak, or temperature mismatch. Pick the wrong part and you can waste money, keep a diesel in limp mode, or trigger overheating and repeat soot buildup. This guide compares symptoms, tests, and repair choices for each failure point so you can tell valve trouble from cooler trouble.
| Decision factor | egr valve | egr cooler | Winner |
|---|---|---|---|
| Main job | Meters how much exhaust gas re-enters the intake based on load and ECU command. | Chills exhaust gas before it returns to the intake, often by 30 to 45 °C. | tie |
| Typical failure pattern | Stuck open, stuck closed, or carbon buildup that disturbs flow control. | Internal coolant leak or soot restriction that changes temperature and flow. | tie |
| Most useful symptom clue | Rough idle, hesitation, poor acceleration, or NOx-related drivability faults. | Coolant loss, white smoke or steam, sweet exhaust smell, or unexplained overheating/overcooling behavior. | egr cooler |
| Best first test | Vacuum pump on older valves, or scan tool live data on electronic valves. | Cooling-system pressure test, leak checks, and inspection for soot blockage or coolant intrusion. | tie |
| Repair tendency | Cleaning often helps when carbon is the problem; replacement is needed when the valve sticks or the feedback fails. | Cleaning may remove soot, but coolant leaks usually call for replacement. | egr valve |
Metering flow versus cutting heat in the EGR circuit
The two parts live in the same exhaust gas recirculation system, but they do different jobs. The egr valve is the metering device. The egr cooler is the heat exchanger that lowers exhaust temperature before recirculation, which helps cut NOx formed at very high combustion temperatures.
One circuit, two different jobs
Exhaust gas recirculation routes exhaust back into the intake to reduce peak cylinder temperature. That matters because combustion temperatures can rise above 1370°C and create NOx, while EGR can lower combustion temperatures by almost 150°C. The valve controls flow. The cooler changes heat.
Where each part sits in the exhaust gas recirculation system
The circuit can include passages, sensors, control logic, the valve, and the cooler. On many diesel systems, the cooler sits upstream of the valve or within the recirculation path so the exhaust re-enters cooler than it left the exhaust stream. Some gasoline systems use a simpler layout, while diesel architecture can be high-pressure or low-pressure EGR.
Why the difference matters for diagnosis
Valve faults usually show up as flow-control problems. Cooler faults usually show up as heat-transfer or coolant-contamination problems. Treating every EGR complaint as “bad EGR” hides the real fault, especially on diesel engines where soot restriction, internal coolant leaks, and mixed failures are common.
How each part works
The egr valve opens and closes according to engine load and ECU command. The egr cooler moves exhaust heat into coolant before that exhaust re-enters the intake. Both help lower NOx, but they fail in different ways and produce different symptoms.
Egr valve function and control strategy
The valve meters exhaust gas back into the intake. Older vehicles often use a vacuum-operated EGR valve, while newer vehicles commonly use an electronically controlled valve with a solenoid or stepper motor and feedback sensor. In some applications, the valve can be up to 90% open at idle, so sticking at the wrong position can affect idle quality quickly.
Egr cooler function and heat transfer path
The cooler is a heat exchanger. It lowers exhaust gas temperature before intake re-entry, commonly by 30 to 45 °C, which helps reduce combustion temperature further. That lower temperature matters most on diesel applications, where the system may be handling soot-laden exhaust on high-pressure EGR layouts or cleaner exhaust on low-pressure EGR layouts.
Gasoline versus diesel layout differences
Gasoline systems often focus on drivability and emissions control with less soot load. Diesel systems face heavier soot exposure, more intake contamination, and a greater chance of cooler restriction or internal leak. High-pressure diesel EGR routes soot-laden exhaust before the DPF, while low-pressure diesel EGR uses exhaust after the DPF, where the gas is almost completely clean of soot.

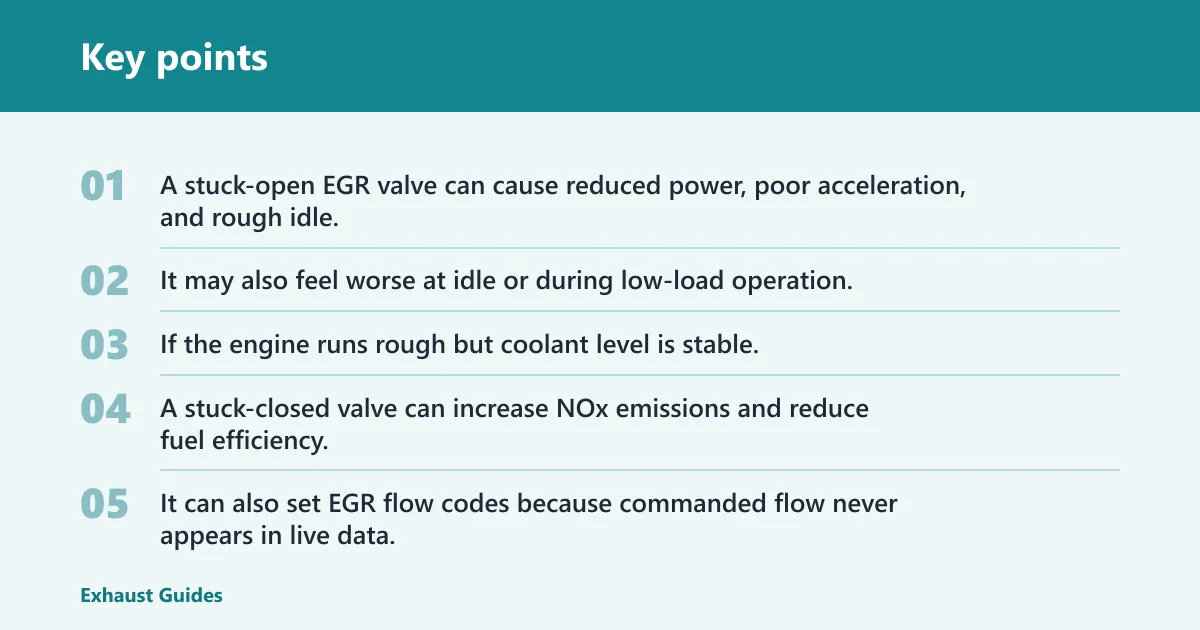

What symptoms point to the valve?
Valve faults usually affect how much exhaust gets recirculated, so the clues look like flow-control problems. Expect rough idle, hesitation, poor acceleration, or a check-engine light tied to EGR command or airflow mismatch. A bad valve can also raise NOx if it stays closed or choke the engine if it stays open.
Stuck open symptoms
A stuck-open EGR valve can cause reduced power, poor acceleration, and rough idle. It may also feel worse at idle or during low-load operation, when exhaust gas should be metered carefully. If the engine runs rough but coolant level is stable, the valve moves higher on the suspect list.
Stuck closed symptoms
A stuck-closed valve can increase NOx emissions and reduce fuel efficiency. It can also set EGR flow codes because commanded flow never appears in live data. On some vehicles, the engine may run smoothly but fail emissions monitoring or show part-load drivability complaints.
Carbon buildup and erratic flow
Carbon deposits are the most common cause of EGR valve failure. They can make the valve stick, flutter, or respond slowly. Because soot also accumulates in passages and intake runners, a “bad valve” code sometimes points to a dirty system rather than a failed motor or diaphragm.
Say your diesel idles rough at a stoplight, but coolant stays full and there is no white smoke. The more likely path is valve flow trouble or restricted passages, not a cooler leak. That small detail changes the repair from cooling-system work to EGR cleaning or valve testing.

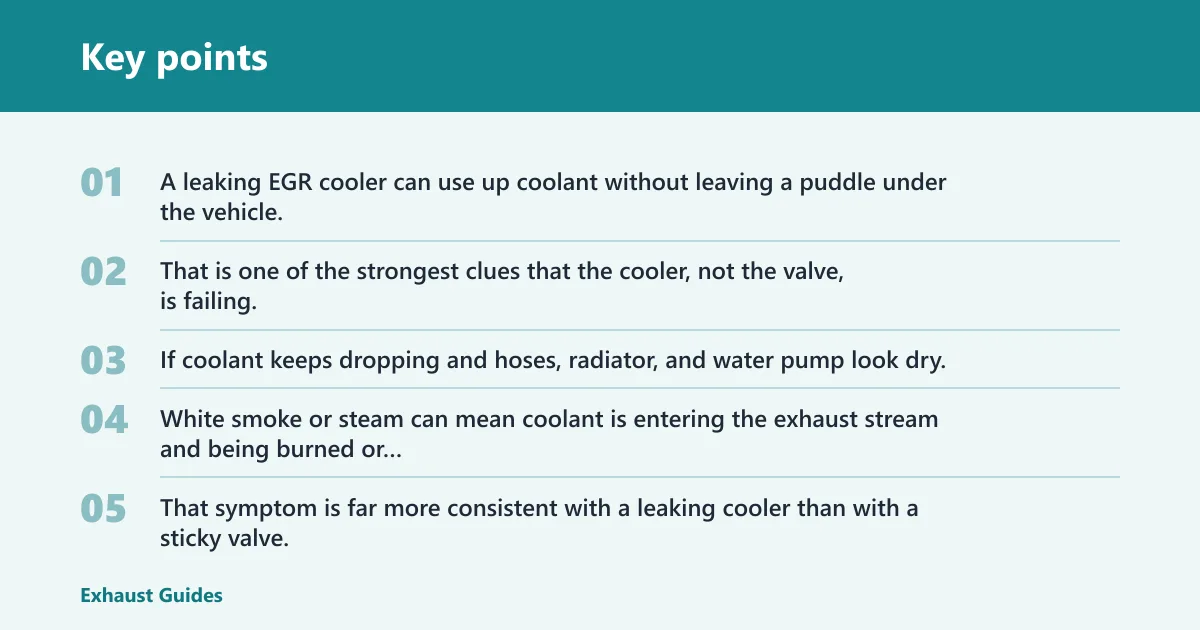

What symptoms point to the cooler?
Cooler faults are less about flow metering and more about temperature control, leakage, or restriction. The strongest clues are coolant loss, white smoke or steam, unexplained pressure in the cooling system, or soot-related temperature problems on diesel engines. A leaking cooler can mimic valve trouble, but the coolant clues usually separate them.
Coolant loss without an obvious external leak
A leaking EGR cooler can use up coolant without leaving a puddle under the vehicle. That is one of the strongest clues that the cooler, not the valve, is failing. If coolant keeps dropping and hoses, radiator, and water pump look dry, the cooler deserves immediate attention.
White smoke or steam from the exhaust
White smoke or steam can mean coolant is entering the exhaust stream and being burned or vaporized. That symptom is far more consistent with a leaking cooler than with a sticky valve. If the vehicle also smells sweet at the tailpipe or misfires after startup, stop treating it like a plain valve issue.
Soot restriction and temperature control problems
Diesel coolers can clog with soot, especially on high-pressure EGR systems. Restriction can upset exhaust flow, raise backpressure, or reduce the cooler’s ability to drop temperature properly. The result may look like poor EGR performance, but the root cause is blocked heat exchange rather than a valve that will not move.
Suppose a pickup loses coolant over two weeks and starts pushing white vapor after cold starts. The valve may still be functional, but the cooler can be leaking internally. In that case, replacing or pressure-testing the cooler matters far more than cleaning the valve again.

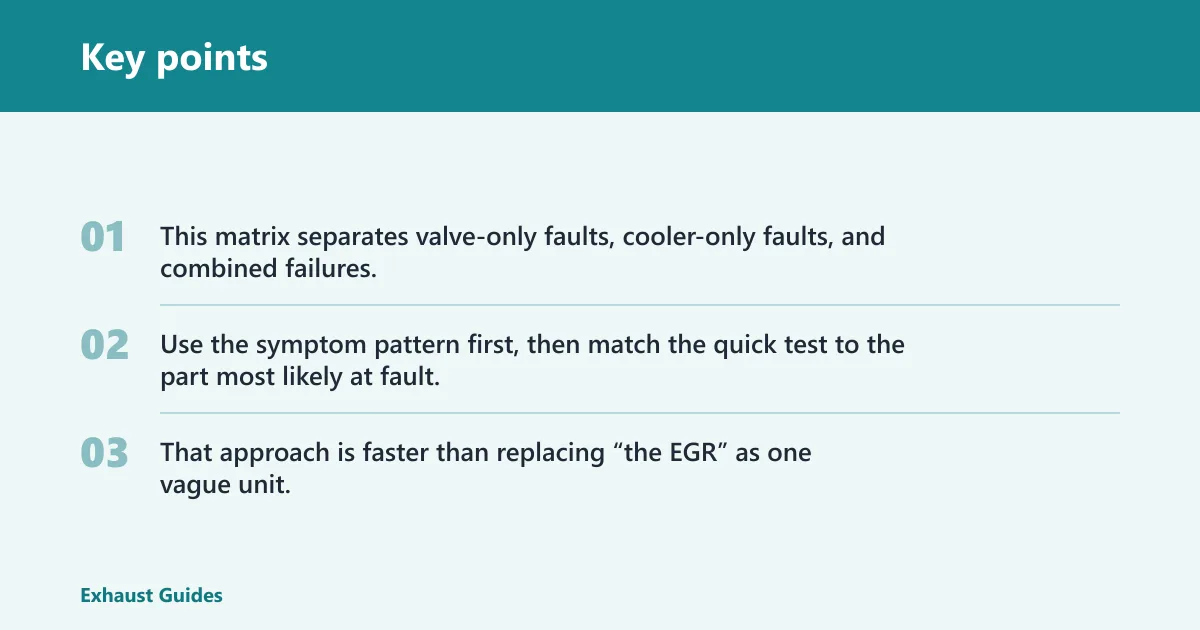

Diagnosis matrix
This matrix separates valve-only faults, cooler-only faults, and combined failures. Use the symptom pattern first, then match the quick test to the part most likely at fault. That approach is faster than replacing “the EGR” as one vague unit.
| Symptom | Likely part | Quick test | Next action |
|---|---|---|---|
| Rough idle, poor acceleration, no coolant loss | egr valve | Check commanded versus actual EGR on a scan tool, or apply a hand vacuum pump on vacuum-operated valves. | Clean the valve and passages first; replace the valve if it sticks or ignores command. |
| NOx-related code, high load drivability issue, valve position appears fixed | egr valve | Watch live data for response to command; inspect for carbon buildup and blocked passages. | Clean or replace the valve, then clear the cause of restricted flow. |
| Coolant loss, white smoke, sweet exhaust smell | egr cooler | Cooling-system pressure test and inspection for internal leakage into exhaust or intake tract. | Replace the cooler if it leaks; do not keep driving it if coolant is entering the exhaust. |
| Soot buildup, low flow, temperature mismatch with no coolant loss | egr cooler | Inspect for soot restriction in the cooler and nearby passages; compare requested and actual temperature behavior where available. | Clean only if the cooler design and contamination level make that practical; replace if flow is still restricted. |
| Rough idle plus coolant loss or steam | both | Check valve response and pressure-test the cooling circuit before assuming a single fault. | Repair the leak first, then reassess valve flow and intake contamination. |
How do you test the right part?
Start with the control type. A vacuum-operated EGR valve typically calls for a hand vacuum pump. An electronic valve usually needs scan tool live data and command tests. Coolers need leak and flow checks, not just valve actuation tests, because a healthy valve cannot fix a leaking or plugged cooler.
Hand vacuum pump checks for vacuum-operated valves
Apply vacuum to the diaphragm and watch for smooth movement and stable hold. If vacuum does not move the valve, the diaphragm may be damaged or the valve may be stuck with carbon. If it moves but the engine still shows EGR-related symptoms, the problem may be in the passages, sensors, or cooler.
Scan tool live data for electronic valves
Command the valve open and closed while watching requested versus actual position, airflow, and related sensor data. If the commanded change is present but the response is wrong, suspect the valve, wiring, or feedback sensor. This is especially useful on newer applications where the ECU expects a precise position signal.
Pressure, leak, and flow checks for coolers
A cooler needs a leak check under pressure and a look for soot restriction. If coolant is disappearing with no external leak, pressure testing can point toward internal leakage. If the unit is heavily sooted, flow may be blocked even though the valve itself still responds normally.
Clean, replace, or stop and inspect?
Cleaning helps only when the fault is dirt or soot. It does not repair a cracked cooler, a failed diaphragm, or a damaged feedback sensor. The right move depends on whether the symptom points to carbon buildup, leakage, or a control failure.
When cleaning makes sense
Clean the valve when the fault is carbon buildup and the valve still responds to command. Clean nearby passages and intake runners if soot is restricting flow. On some diesel systems, cleaning the cooler may help if the issue is blockage rather than leakage.
When replacement is the safer call
Replace the valve when it sticks after cleaning, fails an actuation test, or loses feedback. Replace the cooler when it leaks coolant or cannot be cleared of restriction. A cooler leak is not a cleaning problem; it is a replacement problem.
What to inspect in passages, sensors, and intake
Check the entire exhaust gas recirculation system, not only the named part. Passages can clog, intake runners can fill with soot, and sensors can misreport flow or temperature. A clean valve in a dirty circuit can still produce the same drivability complaint.
Choose egr valve if… / Choose egr cooler if…
Choose egr valve if the symptoms point to flow control: rough idle without coolant loss, poor acceleration, EGR position codes, or a valve that does not respond to vacuum or scan-tool command. Choose egr cooler if the symptoms point to leakage or restriction: coolant loss, white smoke, steam, or soot-blocked temperature control. Choose deeper diagnosis if both sides show faults, because a leaking cooler and a dirty valve can happen together.
A common first-timer mistake is replacing the valve because the check-engine light says EGR, then ignoring the coolant level that keeps falling. If the cooler is leaking internally, the new valve will not solve white smoke or coolant contamination. Match the part to the symptom first.
Egr cooler vs egr delete
An EGR delete is generally an off-road or competition-only diesel concept, and it is often paired with ECM tuning on some platforms. It is not a fix for every drivability complaint, and it does not repair a leaking cooler, a damaged valve, or blocked intake passages on a street-driven vehicle. If the goal is to solve a fault, diagnose the fault first.
When deletion is not the answer
If the complaint is coolant loss, a delete does not repair the leak source. If the complaint is rough idle from a stuck valve, deleting the system may mask the problem while creating compliance and calibration issues. For most drivers, repair beats deletion.
Frequently asked questions
Is egr valve and egr cooler the same thing?
No. The egr valve meters exhaust gas into the intake, while the egr cooler lowers exhaust temperature before that flow re-enters the engine. They sit in the same recirculation circuit, but they fail in different ways and produce different symptoms.
What is the difference between an egr valve and an egr cooler?
The valve controls flow. The cooler removes heat from exhaust gas before recirculation. If you are chasing rough idle or a flow code, start with the valve. If you are losing coolant or seeing white smoke, the cooler moves to the top of the list.
How does an egr cooler work?
An egr cooler is a heat exchanger that pulls heat out of exhaust gas before it reaches the intake. Many modern systems use it to drop exhaust temperature by 30 to 45 °C before re-entry. That helps lower combustion temperatures and reduce NOx production.
Can a bad egr cooler cause the same symptoms as a bad egr valve?
Yes, but only partly. A bad cooler can look like an EGR problem if it is soot-restricted or upsetting flow, yet coolant loss, steam, or white smoke point more strongly to the cooler. A bad valve is more likely to cause rough idle, poor acceleration, or a stuck-flow code.
Should I clean or replace the egr valve or egr cooler?
Clean the valve first if carbon buildup is the likely cause and the part still moves. Replace it if it sticks, ignores command, or fails feedback. Clean a cooler only if the design allows it and the issue is soot restriction; replace it if it leaks coolant or remains restricted.
Can a leaking egr cooler look like an egr valve problem?
Yes, especially when the engine runs rough and the fault code only says EGR. The difference is that a leaking cooler usually brings coolant loss, white smoke, or steam with it. Those clues separate a coolant-side failure from a valve that is merely stuck or carboned up.
