Best Adhesives for Heat Shield Repair (2026): we compared
The best overall pick for a loose, lightly cracked heat shield is a high-temperature RTV silicone or muffler/metal repair adhesive rated for high heat, but only for small, non-structural spots. Use it for rattles, edge gaps, or minor sealing, not torn mounts or missing fasteners. Bad repairs can turn into persistent rattles, melted adhesive, or a shield that drops onto hot exhaust parts.
Quick comparison
| Product | Badge | Best for | Price | ||
|---|---|---|---|---|---|
 |
Titanium Adhesive Backed exhaust heat shield 2500 DegreesMAUTEMOWING | Our pick | Titanium adhesive backed exhaust heat shield | $28.99
Price as of 12 Oct 2026
|
View |
 |
J-B Weld 37901 6 Pack 3 oz. Extreme Heat TemperatureJ-B Weld | Also great | 6 pack extreme heat metallic paste | $44.26
Price as of 12 Oct 2026
|
View |
 |
Permatex 81878 Ultra Copper Maximum Temperature RTVPermatex | Budget pick | Ultra copper maximum temperature RTV silicone | $11.56
Price as of 12 Oct 2026
|
View |
 |
20PCS Car Heat Shield Fastener Repair Kit,Underbody ExhaustSPGICRM | Pair with it | 20 pieces car heat shield fastener repair kit | $8.99
Price as of 12 Oct 2026
|
View |
 |
BOMEI PACK Adhesive Aluminum Foil Heat Shield Tape BarrierBOMEI PACK | Also great | Adhesive aluminum foil heat shield tape | $12.99
Price as of 12 Oct 2026
|
View |
Use adhesive to stabilize non-structural spots, patch barrier material, or seal a small edge gap. If the shield carries load, has a missing mount, or is badly rusted, move to fasteners or replacement instead.
How we chose
The best adhesive for heat shield repair is the one matched to temperature, substrate, and vibration, not the one with the loudest marketing claims. A product that survives 1000°F on paper still fails if it cannot bond oily metal or tolerate flex.
We compared four practical criteria: heat rating versus real exhaust-side exposure, bond behavior on metal or composite material, vibration and flex tolerance, and how much surface prep and cure time the repair needs. Those factors matter more than brand name.
Two failure modes drive most bad repairs: contamination and movement. Oil, rust, and road grime weaken adhesion fast, while repeated heat cycling turns a marginal bond into a crack.
Quick picks
- Best for loose, non-structural gaps: Permatex Ultra Copper RTV silicone. Good for sealing and damping a small rattle where the shield is otherwise supported.
- Best for metal bonding: J-B Weld Extreme Heat metallic paste. Better for small metal-to-metal repairs, especially where you need gap filling.
- Best for patching barrier material: BOMEI PACK adhesive aluminum foil heat shield tape. Best as a surface patch or wrap, not as a load-bearing mount.

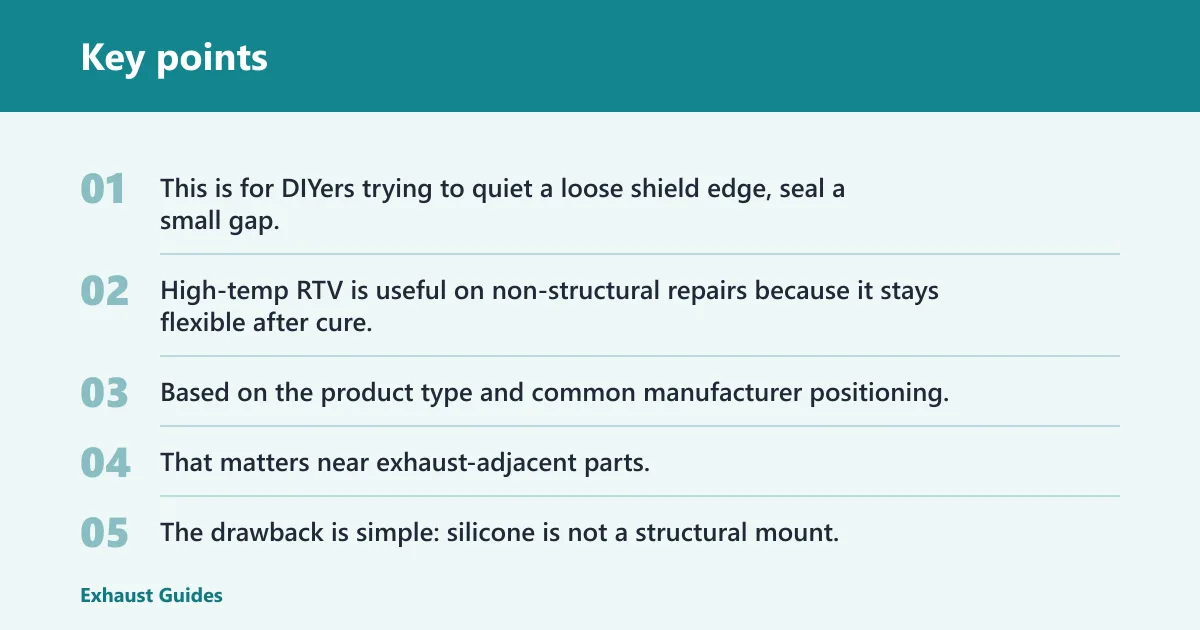

Permatex 81878 Ultra Copper RTV silicone: best for non-structural gaps
- Advanced high temperature RTV silicone
- Three times more oil resistant than conventional silicones
- Sensor-safe, low odor, and non-corrosive
This is for DIYers trying to quiet a loose shield edge, seal a small gap, or stop a light buzz where the metal still has solid fasteners nearby. High-temp RTV is useful on non-structural repairs because it stays flexible after cure, which helps with vibration better than brittle fillers.
Based on the product type and common manufacturer positioning, this class of copper RTV is a sensor-safe, low-odor, non-corrosive silicone with strong oil resistance. That matters near exhaust-adjacent parts, where road film and heat both attack weaker sealants. The drawback is simple: silicone is not a structural mount, so it should not hold up a torn tab, a missing bolt point, or a sagging panel by itself.
Use it where the shield is supported and you need gap control, not where the adhesive becomes the only thing keeping the part in place. If the shield is moving several millimeters at the mount, move to fasteners or replacement.

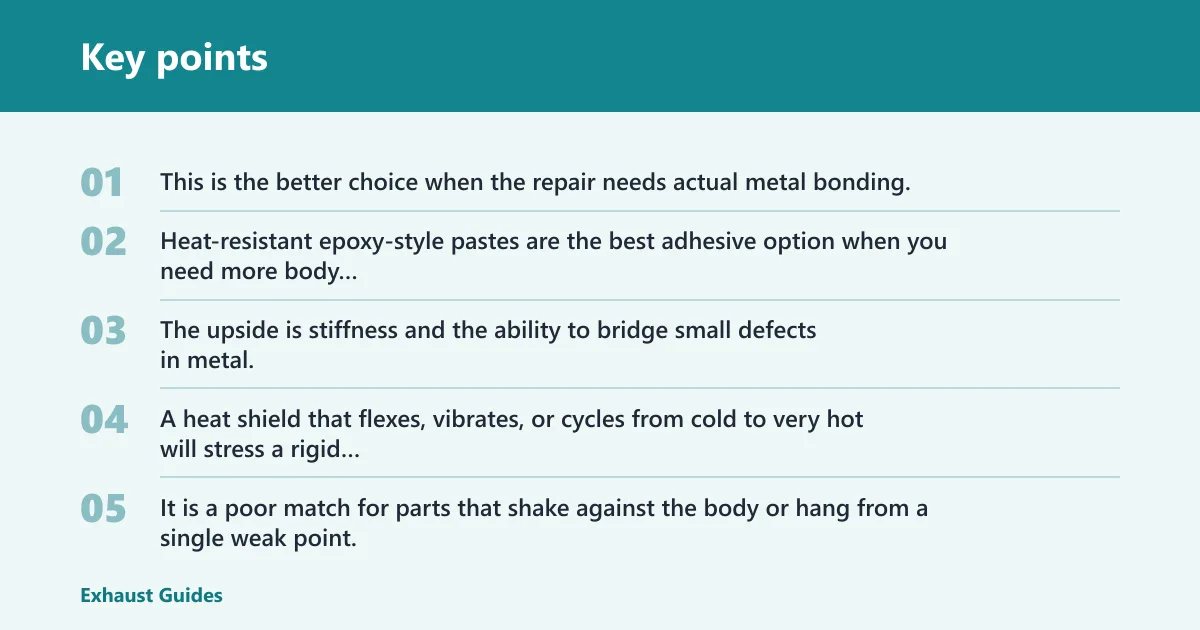

J-B Weld 37901 Extreme Heat metallic paste: best for metal bonding
- Extreme heat temperature resistant formula
- Comes in a convenient 3 oz. plastic tub
- Available in a 6 pack value bundle
This is the better choice when the repair needs actual metal bonding, such as a small crack at a tab, a tiny corner break, or a shallow gap in a steel shield. Heat-resistant epoxy-style pastes are the best adhesive option when you need more body than silicone and some gap-filling ability.
The upside is stiffness and the ability to bridge small defects in metal. The drawback is also stiffness. A heat shield that flexes, vibrates, or cycles from cold to very hot will stress a rigid paste, and that can lead to edge cracking or debonding. It is a poor match for parts that shake against the body or hang from a single weak point.
Use it on small, well-cleaned metal areas where you can hold the joint still through cure. Do not expect it to replace a fastener on a warped or rust-thinned panel.
BOMEI PACK adhesive aluminum foil heat shield tape: best for surface patches
- Made of fiberglass fabric with aluminum-plated outer layer
- Self-adhesive for easy application
- Generous 66-foot roll length
This is for patching or wrapping a heat barrier surface, not for carrying the shield’s weight. Adhesive-backed foil tape works best when you need to cover a worn spot, add a reflective layer, or close a light surface tear on a fiberglass or composite barrier.
Its biggest strength is quick coverage over broad areas. The drawback is temperature ceiling and prep sensitivity. Foil tape is usually only as good as the backing adhesive, and the bond weakens fast on oily, dusty, or peeling surfaces. It also should not be used where fastener load or chassis vibration is high.
Use it as a patch or wrap on a stable barrier, not as the fix for a missing mount or rusted edge. If the panel is warped or the adhesive layer is already lifting, tape will only buy time.
Heat shield repair by failure mode
A heat shield repair is not one thing. A loose rattle, a small edge gap, a torn tab, rust-through, a warped panel, and a missing fastener all call for different repairs. The right answer depends on whether the shield still has sound metal and whether the bond line is doing any structural work.
Exhaust-side heat is the harshest case. Underbody shields see heat, splash, salt, and vibration. Cabin and tunnel shields may run cooler, but they still fail from loose clips, cracked tabs, and repeated heat cycling.
Repair decision checklist: the four-factor test
Use this checklist before you choose adhesive, adhesive plus fasteners, or replacement. Score each factor from 0 to 2. A total of 0 to 3 points favors adhesive alone. A total of 4 to 6 points favors adhesive plus fasteners. A total of 7 to 8 points points to replacement.
| Factor | 0 points | 1 point | 2 points |
|---|---|---|---|
| Temperature | Shield sits far from exhaust heat | Moderate underbody heat | Exhaust-side exposure or heat soak near muffler/catalyst |
| Vibration | Little movement | Some road vibration | Noticeable shake, buzz, or flex at idle and speed |
| Rust | Clean metal, no thinning | Light rust, still solid | Rust-through, flaking edges, or thin metal |
| Load-bearing need | Adhesive is only sealing a gap | Adhesive helps, but fasteners still carry load | Adhesive would be the main retention method |
Result rule: 0-3 points = adhesive is reasonable; 4-6 points = combine adhesive with clamps, bolts, washers, or rivets; 7-8 points = replace the shield or its mounting point.
High-temperature RTV silicone: best for non-structural gaps
High-temp RTV silicone is a good choice for non-structural gaps because it cures into a flexible seal instead of a hard, brittle patch. That flexibility helps when the shield moves a little with vibration or heat cycling, as long as the part is still supported mechanically.
Continuous temperature range and cure method
Most automotive high-temp RTV silicones are sold with continuous service ratings in the 500°F to 650°F range, with short-term peaks higher depending on the formula. Cure is moisture-driven: the silicone skins over first, then cures through after exposure to air humidity. That means thick beads need real cure time before heat exposure.
Where RTV can work on a loose shield edge
RTV works best where a shield edge has a small gap, a slight lift, or a buzz against a bracket, and the fasteners are still doing the real holding. It can also help damp a contact point after the metal is cleaned and tightened. Think of it as a stabilizer, not a bracket replacement.
Where RTV fails: load-bearing points and torn mounts
RTV fails when the shield hangs from the adhesive, when a mounting tab is torn off, or when the part must resist repeated bending. A silicone bead does not replace a missing clip or a corroded bolt hole. If the shield can move freely, the bond will not last.
Heat-resistant epoxy: best for metal bonding
Heat-resistant epoxy is the stronger choice for bonding metal-to-metal repairs when you need shape, gap fill, and a hard cured bridge. It can help on a small crack, a split tab, or a localized break in a steel shield, provided the substrate is solid and the repair is not asked to flex much.
Service temperature and metal adhesion limits
Most heat-resistant epoxies are formulated for elevated temperature service, but the exact limit varies widely by product. The key point is that the epoxy’s service rating must exceed the shield’s real operating environment with margin, not merely match a label number. Oil, rust, and paint reduce metal adhesion sharply.
Gap filling on small cracks or tabs
Epoxy can fill small gaps better than thin sealants, which is useful around a shallow crack or a partly split tab. That said, it should not be used to recreate a missing mount or span a large opening in thin, heat-fatigued metal. Small, clean, stable repairs are the right target.
Why epoxy can fail under flex and vibration
Epoxy is rigid after cure. That rigidity helps bonding strength, but it hurts survival when the shield flexes or rattles. A rigid patch can crack at the edge if the panel is vibrating at idle, if the exhaust moves on its hangers, or if the metal expands and contracts often.
Adhesive-backed heat shielding tape: best for surface patches
Adhesive-backed heat shielding tape is best for patching or wrapping a heat barrier surface, not for mounting a shield. It is useful where the goal is to restore reflectivity or cover a worn surface, especially on composite, fiberglass, or otherwise stable barrier materials.
Backing adhesive type and prep requirements
These tapes usually use a pressure-sensitive adhesive on a foil or fiberglass-faced backing. That backing needs a clean, dry, cool substrate. Surface prep matters more than the tape itself: remove oil, road film, loose rust, and flaking coating before applying it.
Patch or wrap use cases
Use tape as a patch over a small damaged area or as a wrap on a barrier section that still has proper support. It is suited to heat deflection and surface protection. It is not a fix for missing fasteners, a broken tab, or a shield that sags toward the exhaust.
Temperature ceiling and where tape should not be used
Tape has a temperature ceiling set by the backing adhesive, and that ceiling is usually lower than the shield’s hottest possible spot. Do not use it directly where exhaust-side radiant heat, oil spray, or edge lift will attack the adhesive line. Once the edge lifts, the patch fails fast.
How to fix a loose heat shield without welding?
You can fix a loose heat shield without welding by reattaching it with the right mix of adhesive and mechanical support, or by replacing worn hardware. The practical fix is usually clean the area, install a new clamp, washer, bolt, or rivet if the mount is sound, then use adhesive only to stop minor movement.
For a shield with a missing clip or loose edge, start with the fastener path first. Adhesive alone should not carry the load if the panel hangs from a single point or sits close to the exhaust.
Step-by-step repair process
- Let the substrate cool fully before touching it.
- Clean away oil, road grime, and loose dirt with a degreaser.
- Remove rust scale and loose coating from the bond area.
- Scuff the mating surfaces lightly for better keying.
- Dry the area completely. No trapped solvent.
- Install the fastener or support hardware first if needed.
- Apply adhesive only to the prepared, cool, dry surface.
- Hold the part still through the full cure window.
- Heat-cycle gently before driving hard.
A common first-timer mistake is bonding over warm metal after a short drive. The surface may look dry, but heat can trap solvent and weaken the joint before the adhesive ever cures.
How do you clean metal before applying heat shield adhesive?
Clean metal must be degreased, rust-free enough to bond, lightly scuffed, and fully dry before adhesive goes on. If the substrate still has oil, loose rust, or damp solvent, the bond line will fail early, especially near exhaust heat and vibration. Cool metal is easier to prep correctly.
Use a degreaser first, then remove rust and flaky scale with a wire brush, abrasive pad, or sanding disc appropriate to the metal thickness. Finish by wiping the area clean and letting it dry completely. If the surface still feels tacky or greasy, it is not ready.
How long does heat shield adhesive take to cure?
Heat shield adhesive cure time depends on the chemistry. RTV silicone often skins in minutes but needs many hours for a full cure. Epoxies may set sooner on the surface, yet still need full cure before vibration and heat exposure. Tape bonds immediately, but its strength improves after firm pressure and time.
For any of these, follow the product’s cure schedule before full driving, spirited driving, or long heat soak. Early exposure is one of the fastest ways to ruin a repair that looked fine on the bench.
What temperature rating does heat shield adhesive need?
Heat shield adhesive should be rated above the shield’s actual operating temperature, with extra margin for heat soak and radiant load from the exhaust side. For many automotive repairs, that means choosing a product in the 500°F to 1000°F class rather than a general-purpose glue. More margin is safer.
Do not confuse the shield’s job with the adhesive’s limit. The metal barrier may tolerate much more than the bond line, and the adhesive is usually the weak link first. If the spot sits close to a catalytic converter or muffler, move up in rating or move to fasteners.
Should you glue or fasten the heat shield?
Glue the heat shield only when the adhesive is helping a supported, non-structural repair. Fasten it when the joint must carry load, resist vibration, or replace a missing mount. Adhesive plus clamps, bolts, washers, or rivets is often the safer compromise for borderline repairs.
When adhesive plus clamps, bolts, washers, or rivets makes sense
Use adhesive plus fasteners when the shield still has usable metal but the original mount is weak. A clamp can take the load while RTV or epoxy quiets the edge and blocks rattle. Washers help spread load over thin sheet metal. Rivets can restore attachment where access is limited.
When adhesive should not be used alone
Do not use adhesive alone on rust-through, warped metal, cracked mounting tabs, or missing attachment points. If the shield can flex away from the body or sag toward the exhaust, adhesive is only delaying failure. In those cases, the repair needs hardware or a new shield.
When replacement is the better long-term fix
Replace the shield when the panel is thin from rust, the mounting flange is torn, or the part is warped enough that it keeps contacting nearby components. Replacement is also the right call if the shield has already failed several times after temporary repair. Repeated heat cycling usually wins.

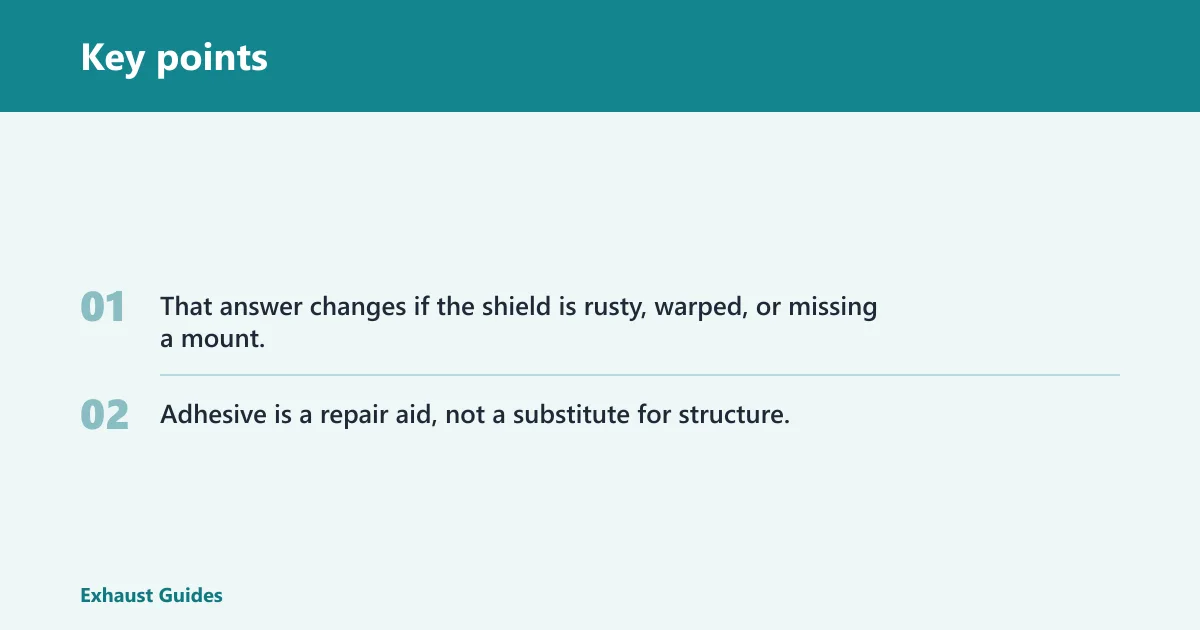

What is the best adhesive for heat shield repair?
The best adhesive for heat shield repair is the one matched to temperature, substrate, and vibration, not the one with the biggest marketing claim. For non-structural gaps, high-temp RTV silicone is usually the best all-around choice; for small metal bonds, heat-resistant epoxy is better; for barrier patches, foil tape is the right tool.
That answer changes if the shield is rusty, warped, or missing a mount. Adhesive is a repair aid, not a substitute for structure.
What if the heat shield is rusted through or warped?
If the heat shield is rusted through or warped, adhesive usually is not the right fix. Rust-through means the base metal has lost strength, and warp often means the part no longer fits correctly. In those cases, replacement or hardware repair is usually safer than glue.
Small surface rust can be cleaned and repaired if enough solid metal remains around the bond area. Once the edge is perforated or the panel shape has changed, the adhesive has little to hold onto.
Can adhesive stop a heat shield rattle long term?
Adhesive can stop a heat shield rattle long term only when the rattle comes from a small, stable gap and the shield still has proper mechanical support. If the buzz is caused by a loose bracket, cracked tab, or repeated flex, the fix will usually fail unless you add fasteners or replace the part.
Think of adhesive as a rattle suppressor, not a cure for a bad mount. If the noise returns after heat cycling, the joint needs hardware, not more glue.
how to fix a heat shield
To fix a heat shield, identify the failure mode first: loose edge, missing fastener, small crack, rust damage, or warped panel. Then clean the area, restore mechanical support where needed, and use adhesive only for non-structural sealing or patching. If the shield is thin or missing mount points, replacement is usually the right call.
how to replace a heat shield
To replace a heat shield, remove the damaged panel and any failed hardware, match the new shield to the original mounting points, and install fresh clips, bolts, washers, or rivets as specified by the vehicle layout. Replacement is the correct fix when the old shield is rusted through, warped, or no longer holds alignment.
Frequently asked questions
What is the best adhesive for heat shield repair?
For small, non-structural repairs, high-temperature RTV silicone is usually the best all-around adhesive because it stays flexible and tolerates vibration better than rigid fillers. For metal bonding, a heat-resistant epoxy is better. For barrier patches, adhesive-backed foil tape fits the job, but none of these replace a missing mount.
How do you fix a loose heat shield without welding?
Clean the metal, remove rust, and restore the shield’s support with clamps, bolts, washers, or rivets if the mount is still sound. Then use high-temp RTV or epoxy only to stabilize a small gap or stop a light buzz. If the mount is gone, welding is not the only answer; replacement may be cleaner.
Can you use high-heat epoxy on a heat shield?
Yes, but only on small metal repairs where the shield stays fairly rigid. High-heat epoxy is good for filling a small crack or bonding a tab, but it is not a good choice for joints that flex, rattle, or carry structural load. Vibration usually breaks rigid repairs first.
Will silicone adhesive hold a heat shield in place?
Silicone adhesive can hold a shield edge, seal a gap, or stop a minor rattle if the part is already supported by its hardware. It should not be trusted to hold a shield in place by itself when a fastener is missing or a tab is torn. That is a structural problem.
What temperature rating does heat shield adhesive need?
Choose adhesive rated above the shield’s hottest likely service temperature, with margin for exhaust-side heat soak. In practice, that usually means a product in the 500°F to 1000°F range for many automotive uses. If the repair sits near the muffler or catalyst, be conservative and favor fasteners too.
Should I replace a heat shield instead of gluing it?
Yes, replace it if the shield is rusted through, warped, missing mounting points, or repeatedly failing after temporary repairs. Glue is for small, stable, non-structural problems. Once the panel loses material or shape, the adhesive has nothing durable to support.
