3 Best Gaskets for Header Collector Leaks (2026): We Compared
The best gasket for header collector leaks is the one matched to collector diameter, bolt spacing, and flange flatness: MLS for flat rigid flanges, graphite or composite for small imperfections, and soft aluminum only for perfectly aligned joints. Wrong choice means exhaust leaks, burnt gaskets, ticking noise, soot marks, and repeated retightening. This guide compares collector gasket types by fit, heat tolerance, vibration, and sealing behavior so you can choose without guesswork.
Quick comparison
| Product | Badge | Best for | Price | ||
|---|---|---|---|---|---|
 | PLKHCU 2Pcs 3" Copper Exhaust Flange Collector Gasket +PLKHCU | Our pick | 3" copper · SBC/BBC fit · 2-pack kit | $18.99 Price as of 21 Oct 2026 | View |
 | 2PCS 3" Exhaust Gasket,Copper Exhaust Flange for Headercarleef | Budget pick | 3" copper · 3.3" spacing · 2-pack | $8.99 Price as of 21 Oct 2026 | View |
 | QYandRH 3.5 Inch Exhaust Gasket, 3-Bolt Graphite FlangeQYandRH | Also great | 3.5" graphite · 3-bolt · 2-pack | $8.99 Price as of 21 Oct 2026 | View |
If you already know your collector size, start with that first. A 2.5-inch or 3-inch flange with the correct 3-bolt triangle spacing usually narrows the field faster than a brand name.
For the common SBC and BBC collector setup, the choice usually comes down to flatness, heat, and how often the joint moves under load.
How we chose
Fitment comes first, not hype. The gasket has to match collector diameter, triangle bolt spacing, and engine-family application notes before material even matters.
Heat cycling and vibration came next. A gasket that survives a short street drive may fail quickly on a hard-used or track car if the flange moves.
Flange condition matters just as much. A warped or pitted collector face can make a copper gasket look “bad” when the real fault is the mating surface.
Service life and reuse were also weighed. Copper can be reused if it is undamaged, but repeated crush cycles or visible distortion change that answer fast.

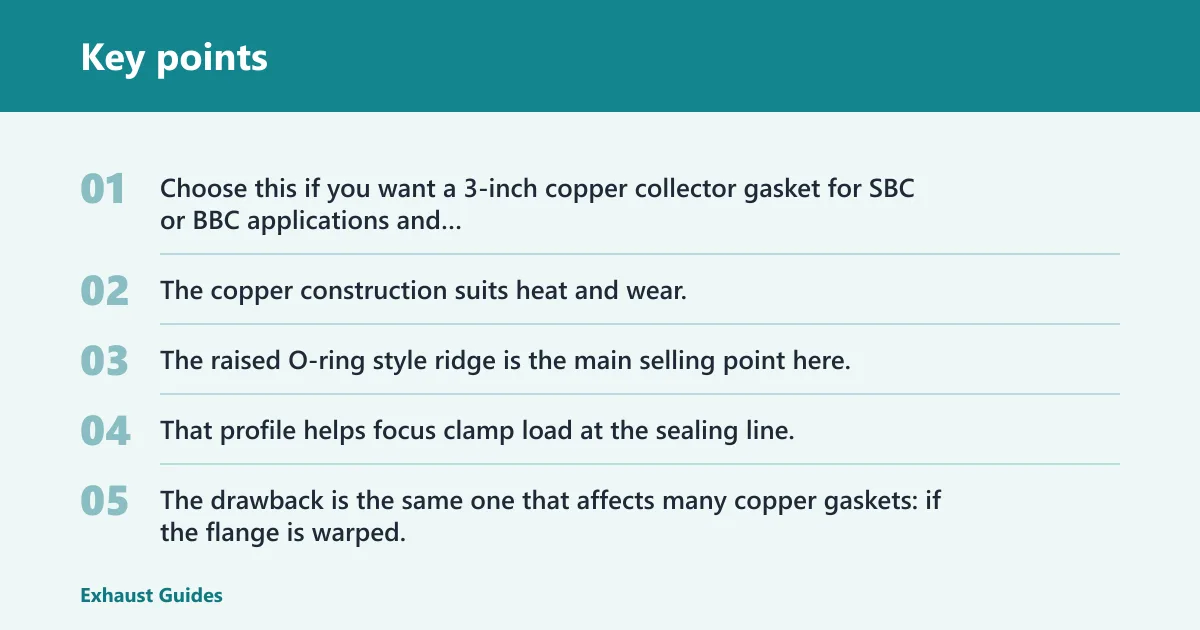

PLKHCU 3-inch copper kit: best for SBC/BBC street use
- Designed for Chevy small and big block engines
- Raised O-ring style ridge for leak-free sealing
- Includes 304 stainless steel bolts and nuts
Choose this if you want a 3-inch copper collector gasket for SBC or BBC applications and you want hardware in the same kit. The copper construction suits heat and wear, and the included stainless bolts and nuts make it a practical replacement when the old fasteners are tired.
The raised O-ring style ridge is the main selling point here. That profile helps focus clamp load at the sealing line, which matters on a collector joint that sees heat cycling and repeated vibration.
The drawback is the same one that affects many copper gaskets: if the flange is warped, cracked, or badly misaligned, copper alone will not solve it. Reuse is only sensible if the gasket comes off clean, flat, and undamaged.
Carleef 3-inch copper gasket: best for budget 3-bolt fit
- Made of top quality copper material
- Provides effective sealing to prevent leaks
- Includes two matching header gaskets
This is the budget pick for a 3-inch 3-bolt triangle collector joint when you want copper sealing without spending much. The published fitment notes point to BBC and SBC compatibility, and the 3.3″ spacing detail makes it a useful candidate for the common triangle layout.
It fits the simple job: seal the collector and pipe, keep the leak at bay, and avoid overpaying for a car that only needs a straightforward replacement. That is why it makes sense for many street rebuilds and plain collector swaps.
The tradeoff is thinner margin for error if the flange face is rough or the bolts are unevenly loaded. Copper can handle heat well, but a bad mating surface still wins the fight.
QYandRH graphite gasket: best for heat-stressed 3-bolt joints
- Designed for 3.5-inch 3-bolt exhaust connections
- Metal and graphite composite construction
- Reinforced inner ring for durability
This one fits a heavier-duty sealing job where heat and movement matter more than price alone. The metal-and-graphite composite construction is aimed at a 3.5-inch 3-bolt exhaust connection, and the reinforced inner ring is meant to hold the seal under tougher service.
Graphite can be the smarter choice when a joint sees repeated thermal expansion or when a copper gasket keeps needing retorque. It is also a sensible alternative when you want a softer sealing layer than a rigid metal-only design.
The limitation is fitment. It is not a direct answer for every 2.5-inch or 3-inch collector, so the diameter and bolt pattern must be confirmed before buying.
How to choose
Start by matching the collector diameter. A 2.5-inch collector needs a 2.5-inch gasket face, and a 3-inch collector needs a 3-inch gasket face; if the flange diameter does not match, leaks are likely no matter how good the material is.
Then check the bolt pattern and spacing, which listings may describe with slightly different measurements. Most header collector joints use a 3-bolt triangle pattern, and published listings for this style commonly cite 76 mm spacing for 2.5-inch options and 84 mm spacing for 3-inch options. Some listings also refer to 3-3/8-inch center-to-center, so measure before ordering.
Look at flange condition next. A flat, rigid flange favors MLS or a well-made copper gasket. A flange with light imperfections often does better with graphite or a composite design. A visibly warped flange needs repair before another gasket goes on.
Say your 3-inch collector ticks after a fresh install and the bolts are all tight. If the flange face is visibly uneven, the problem is probably not the gasket material, it is the mating surface or bolt alignment.
Suppose a 2.5-inch SBC collector keeps leaving soot at one side of the joint. If the bolt pattern matches but the spacing is off by a few millimeters, the gasket is being crushed unevenly and will fail again.
Copper gasket: best for heat
Copper is the straightforward pick when heat resistance and wear resistance matter more than anything else. It is common in 2-piece packs, and a good copper gasket can be reused if it comes off undamaged and still flat.
For collector leaks, copper makes the most sense on a sound flange with correct bolt spacing and a clean mating face. It handles temperature well, and it tolerates repeated heat cycling better than many soft materials.
It fails when the joint is wrong, not just when the material is weak. A warped flange, mismatched collector diameter, or missing clamp load will make a copper gasket leak just as quickly as a cheaper part.
When copper fits
Copper fits a flat 2.5-inch or 3-inch collector joint on SBC or BBC applications where the flange is true and the bolts pull evenly. It is a good choice for street cars that see regular heat but do not have severe flange distortion.
When copper fails
Copper is a poor choice when the flange is warped, the collector holes are mismatched, or the joint must absorb a lot of movement. Reusing a crushed or visibly bent copper gasket usually trades a cheap part for a repeat leak.

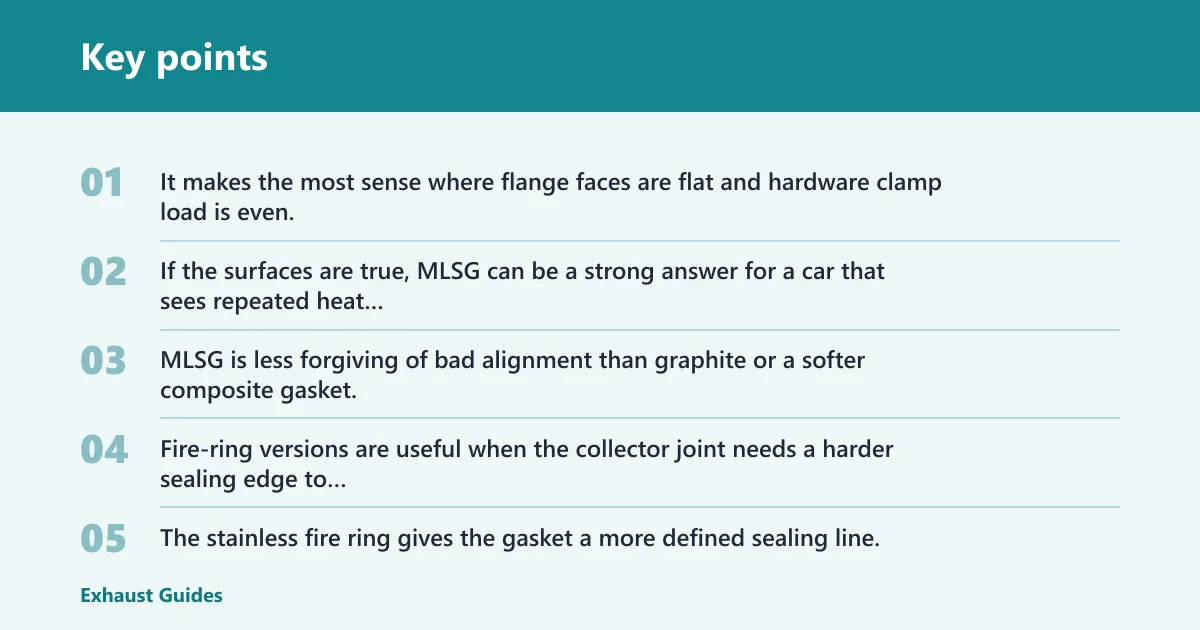

MLSG gasket: best for extreme heat
MLSG, or multi-layer steel gasket, is the material to look at when the collector sees extreme heat and you want a very rigid sealing stack. One listed example is a 3 Bolt MLSG High Temp Exhaust Gasket with an SS fire ring, which is the kind of build that targets durable sealing under hard use.
It makes the most sense where flange faces are flat and hardware clamp load is even. If the surfaces are true, MLSG can be a strong answer for a car that sees repeated heat soak, track work, or long high-load pulls.
The drawback is tolerance. MLSG is less forgiving of bad alignment than graphite or a softer composite gasket, so it is not the first fix for a sloppy flange.
Fire-ring variants
Fire-ring versions are useful when the collector joint needs a harder sealing edge to resist hot gas cutting. The stainless fire ring gives the gasket a more defined sealing line, which helps when heat is intense and the joint is mechanically stable.
Track and hard-use cases
Choose MLSG when repeat heat cycles and clamp stability matter more than a forgiving seal. If the collector flange is flat and the bolts stay torqued, this is a stronger long-term bet than a softer gasket that may relax over time.
Graphite gasket: best for warped flanges
Graphite is often the better answer when the collector flange has light imperfections or when vibration keeps upsetting a metal-only seal. Fire-ring variants exist, and the material is commonly used as an alternative to copper for heavy-duty or heat-stressed joints.
It can bridge small surface issues better than a rigid metal gasket, which is why it belongs in the conversation for stubborn collector leaks. On a joint with slight irregularity, graphite may seal where a harder gasket keeps weeping at the edge.
The drawback is durability under abuse. If the flange is badly distorted or the bolt pattern is wrong, graphite is not a cure; it is just more forgiving than a stiff gasket.
Heavy-duty sealing
Graphite works well when the joint needs a compressible face that can absorb minor defects. That makes it useful for older headers, repaired collectors, or setups that see a lot of vibration.
When graphite beats copper
Graphite beats copper when the flange is not perfectly flat but still within repairable range. If copper keeps leaking at one edge after proper torque, graphite is often the smarter next step before you start machining parts.
Collector leak decision table
| Collector diameter | Bolt pattern / spacing | Flange condition | Use case | Best gasket material | Failure symptom check |
|---|---|---|---|---|---|
| 2.5-inch | 3-bolt triangle, often 76 mm spacing | Flat and rigid | Street SBC or BBC, normal heat | Copper or MLSG | If soot appears at one edge, check bolt pull and face flatness before replacing the gasket again. |
| 3-inch | 3-bolt triangle, often 84 mm spacing; some listings note 3-3/8-inch center-to-center | Flat and true | Street or mild performance use | Copper | If the gasket burns only on one side, suspect flange warp or misalignment, not material choice alone. |
| 2.5-inch or 3-inch | Triangle holes match but clamp feels uneven | Minor imperfections | Heat-cycled street car | Graphite | If retorque helps briefly and then the tick returns, the surface may be too uneven for a rigid gasket. |
| 2.5-inch or 3-inch | Correct pattern, high heat | Flat, rigid, well-aligned | Track or heavy heat load | MLSG with SS fire ring | If the gasket is cleanly crushed but still leaks, clamp load or surface finish may be the issue. |
| Any size | Pattern does not line up cleanly | Warped or damaged | Repeated leak after new gasket | Re-machine or repair the flange | If bolt holes force the gasket sideways, replacing material alone will not fix the joint. |

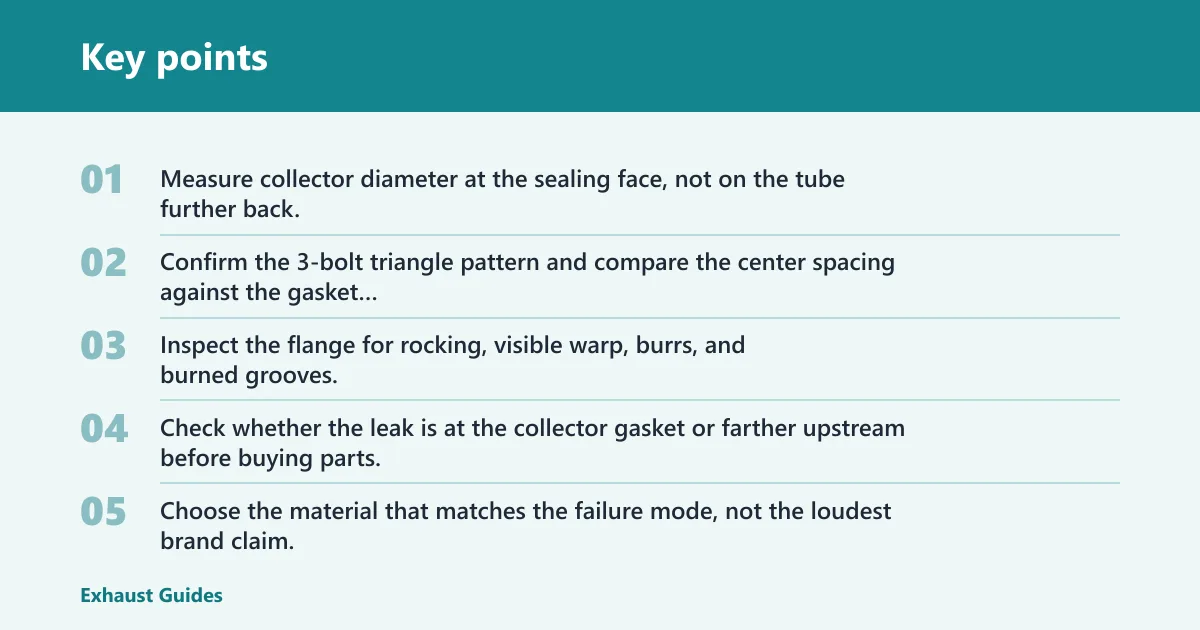

Failure checklist: use copper when the flange is flat and you need heat resistance; use MLSG when the joint is rigid and heat is severe; use graphite when the flange has small defects or the leak returns after retorque; re-machine the flange when the face is warped, pitted, or pulling the gasket sideways.
- Measure collector diameter at the sealing face, not on the tube further back.
- Confirm the 3-bolt triangle pattern and compare the center spacing against the gasket listing.
- Inspect the flange for rocking, visible warp, burrs, and burned grooves.
- Check whether the leak is at the collector gasket or farther upstream before buying parts.
- Choose the material that matches the failure mode, not the loudest brand claim.
What are header gaskets?
Header gaskets are the sealing parts used at exhaust header joints, including the collector-to-pipe connection. In this guide, the focus is the collector gasket, which sits between the header collector and the exhaust pipe or extension to keep hot exhaust gas from escaping.
On SBC and BBC setups, this usually means a 3-bolt triangle collector joint in 2.5-inch or 3-inch sizing. The gasket must match both the diameter and the bolt pattern, or it will leak even if the material is high quality.
How do I measure header collector gaskets?
Measure the collector diameter first, then measure the triangle bolt spacing from center to center. Many listings reference 76 mm spacing for 2.5-inch options and 84 mm spacing for 3-inch options, and some use 3-3/8-inch center-to-center language for the triangle layout.
Use a caliper or ruler for the flange face, not the outside of the pipe bend. If the bolt pattern matches but the collector diameter does not, the gasket can hang over the sealing edge and start a leak immediately.
Which one should you buy?
For a budget street repair, a copper gasket is the first place to look, especially on a correctly sized 2.5-inch or 3-inch SBC or BBC collector. The Carleef 3-inch copper gasket and the PLKHCU 3-inch copper kit both fit that role, with the PLKHCU option adding hardware in the box.
For a street car with a slightly imperfect flange, graphite is the safer route. It gives you more forgiveness at the sealing face, which matters when a collector has light warp or vibration but still measures correctly.
For a track car or a very hot exhaust joint with a flat flange, MLSG is the stronger material choice. The 3 Bolt MLSG High Temp Exhaust Gasket with an SS fire ring is the type of design that belongs in that category.
Do not buy another gasket if the flange is visibly warped or the holes do not line up. In that case, repair or machine the flange first, because no material can fully compensate for a bad mating surface.
Frequently asked questions
What is the best header gasket material?
The best material depends on the failure mode. Copper suits heat and wear on a flat flange, MLSG suits extreme heat on a rigid joint, and graphite suits light flange imperfections or vibration. If the flange is badly warped, the smartest fix is repair, not another gasket.
What is the best gasket for a 3-inch header collector?
A 3-inch collector usually does best with a copper gasket or MLSG if the flange is flat and the bolt pattern matches cleanly. If the joint has minor imperfections or a history of return leaks, graphite is often the safer choice before moving to machine work.
Do I need sealant on header collector gaskets?
Sealant is not a cure for a bad fit. Use it only if the gasket maker’s instructions allow it and the mating faces are clean, flat, and correctly aligned. If the collector diameter or bolt spacing is wrong, sealant usually masks the problem for a short time and then fails.
Are copper header collector gaskets reusable?
Copper gaskets may be reusable if they come off undamaged, without crushing, grooves, or bends. Once the gasket is distorted or heat-cycled into a hard crease, reuse becomes risky and can lead to another leak at the same joint.
How do I stop a header collector gasket from leaking?
Match the collector diameter, confirm the 3-bolt triangle spacing, and inspect the flange for warp before installation. If the leak persists after proper torque, the issue is often alignment or surface condition rather than the gasket brand, so repair the flange before replacing the part again.
