Can I Measure Diesel Exhaust Inside The Truck Canb? Essential Guide
Yes, you absolutely can measure diesel exhaust fumes, specifically Nitrogen Oxides (NOx) and Particulate Matter (PM), inside a truck’s cabin (canb or cab). However, this requires specialized, sensitive safety equipment, not simple DIY tools. Monitoring is crucial for health and regulatory compliance, especially in modern diesels equipped with complex emission control systems.
Do you smell something strange inside your truck cabin lately? Maybe a faint, sharp odor after working hard or idling for a while? It’s a worrying feeling when you realize the exhaust fumes from outside might be sneaking inside your workspace—the cab. Many truck owners, especially those driving older diesels or who work in tight spaces, often wonder if these dangerous gases are getting in. The good news is that yes, measuring is possible, but it needs the right approach to stay safe and compliant. This guide will walk you through why this is important, what tools you need, and the best practices, all without confusing technical talk. Let’s figure out how to keep your cab clean and your air safe!
Why Measuring Diesel Exhaust Inside Your Truck Cab is Essential
Diesel exhaust is a complex mix of gases and tiny particles. Unlike gasoline engines, diesel exhaust contains soot (Particulate Matter or PM) and harmful gases like Nitrogen Oxides ($NO_x$) and Carbon Monoxide (CO). These are not just smells; they are serious health risks.
The Dangers Lurking in Diesel Exhaust
Breathing in these fumes, even in small amounts over time, can lead to big problems. For professional drivers or owner-operators spending countless hours in the cab, this is an immediate safety hazard.
- Particulate Matter (PM): These are the microscopic soot particles. They can lodge deep in your lungs, leading to respiratory issues, asthma flare-ups, and long-term cardiovascular problems.
- Nitrogen Oxides ($NO_x$): These gases are corrosive and primarily affect the respiratory tract, causing irritation and lung damage over time.
- Carbon Monoxide (CO): Though less prevalent in modern, well-maintained diesels than in older ones, CO displaces oxygen in your blood, leading to dizziness, confusion, and, in high concentrations, death.
Understanding that exposure is cumulative—the damage builds up over years—underscores why checking your cab air quality isn’t just about comfort; it’s about long-term health protection.
Regulatory Compliance and Performance Checks
Modern diesel trucks are heavily governed by emission standards (like EPA standards in the US). Leaks that allow exhaust into the cab can sometimes signal a breakdown in the emission control system itself (like an issue with the DPF or EGR system). While measuring inside the cab doesn’t test the external emissions system efficiency directly, a strong presence of fumes inside strongly suggests a significant exhaust leak somewhere upstream or near the cabin air intake.
For commercial operators, ensuring a safe working environment is often part of occupational safety checklists.
The Tools Needed to Measure Exhaust Fumes Safely
You cannot detect or measure dangerous gases like $NO_x$ or CO just by sniffing the air. You need calibrated, electronic sensors. Trying to use simple household detectors meant for household gas leaks is inaccurate and potentially dangerous when dealing with specific combustion byproducts.
Essential Monitoring Equipment
To accurately measure diesel exhaust components inside your truck’s cabin (canb), you need specific personal or portable gas monitoring equipment calibrated for industrial use.
| Gas/Contaminant | Typical Detection Tool | Why It Matters Inside the Cab |
|---|---|---|
| Carbon Monoxide (CO) | Portable Single/Multi-Gas Monitors | Quickest indicator of poor combustion or a major exhaust breach. |
| Nitrogen Oxides ($NO_x$) | Specific Electrochemical Sensors | Key component of diesel exhaust; indicates problems with $text{NO}_x$ aftertreatment or high combustion temperatures. |
| Hydrocarbons/Soot (PM) | Personal Dust/Particulate Monitors | Measures the fine soot particles entering through ventilation or leaks. |
Personal Gas Monitors vs. Fixed Cabin Sensors
When deciding how to measure, think about the purpose:
- Portable/Personal Monitors: These are excellent for spot-checking an area. You can place one on the dashboard or near the HVAC intake while driving or idling in different conditions. These are relatively beginner-friendly and widely available for occupational safety.
- Fixed Sensors: These are more complex, requiring wiring into the vehicle’s electrical system or an aftermarket monitoring system. They provide continuous data logging but are often overkill for the average owner concerned about occasional smells.
When purchasing equipment, always look for devices that meet occupational health standards, such as those tested by NIOSH (National Institute for Occupational Safety and Health). You can find reliable models from established safety equipment suppliers.
Step-by-Step Guide: How to Take Readings Inside the Cab
Measuring exhaust accurately involves more than just turning on a device. You need to replicate driving conditions where leaks are most likely to occur. This process ensures you capture real-world exposure risks.
Step 1: Preparation and Equipment Check
Before you start measuring, ensure your tools are ready. An uncalibrated sensor gives you useless data.
- Read the Manual: Understand how your specific monitor works, especially its response time.
- Bump Test: If required by your detector type, perform a bump test using calibration gas to ensure the sensors are functioning before deployment.
- Charge Batteries: Ensure all monitoring devices are fully charged for the duration of your test drive.
Step 2: Establishing Baseline Readings (Outside and Off)
You need a reference point. Start by taking readings with the engine completely off, doors and windows closed. This measures the background air quality of your immediate environment (parking lot, garage, etc.). This number should be zero or extremely low for all dangerous components.
Step 3: Idle Test (Worst Case Scenario for Leaks)
Exhaust leaks often become most apparent when the engine is running but the vehicle is stationary, as the air pressure and heat buildup are significant, but airflow over the chassis is minimal.
-
- Start the diesel engine.
- Let it idle for 15–20 minutes. Try to replicate the conditions when you usually notice a smell (e.g., high fan speed, A/C on maximum).
- Place the portable monitor securely near the driver’s hip or on the center console, away from direct vents if you are specifically trying to measure infiltration, not just HVAC output.
Tip: If you suspect the HVAC system is pulling in exhaust, run the fan on high with the Fresh Air setting (not Recirculate) and monitor immediately near the intake vents, if possible.
- Record the measurements every 5 minutes.
Step 4: Driving Cycle Test
Airflow dynamics change dramatically when moving, which can either reduce or increase cabin intrusion depending on where the leak is located relative to the undercarriage.
- Begin driving on routes that simulate typical use (city driving, highway speeds).
- Monitor the sensor readings, especially during acceleration and heavy load, as this increases exhaust volume and pressure.
- Keep an eye out for any correlation between high readings and specific driving maneuvers (e.g., going uphill).
Step 5: Analyzing the Results
What do the numbers mean? Look up the occupational exposure limits (OELs) for the gases you measured. For example, OSHA mandates exposure limits for CO and $NO_x$. If your readings consistently exceed these limits, you have an infiltration problem that must be traced back to its source. Check against typical environmental background levels, like those discussed by the US Environmental Protection Agency for ambient air quality, though in-cab levels during operation will naturally be higher than outdoor ambient readings.
Common Sources of Exhaust Infiltration into the Diesel Cab
If your monitoring reveals unacceptable levels of exhaust inside the cab, the next logical step is finding the leak. For modern trucks, sources are often related to emission control systems or imperfect seals.
1. Leaks in the Exhaust Manifold or Up-Pipe
This is the most common source, especially on older trucks or those heavily modified. The manifold connects the engine head to the rest of the exhaust system.
- Cracked manifolds are common due to extreme heat cycling.
- Blown manifold gaskets allow pressurized exhaust gas to escape directly under the hood, where it can easily be drawn into the cabin air intakes.
2. Problems with the Diesel Particulate Filter (DPF) or Aftertreatment System
Modern diesel trucks use complex systems to clean up exhaust. If the DPF cracks, or if sensors or piping related to the Diesel Exhaust Fluid (DEF) system fail and cause backpressure issues, leaks can develop. A major failure in the exhaust system downstream of the engine can force gases backward or sideways into vulnerable areas near the cab firewall.
3. Cab Firewall Penetrations and Seals
The firewall separates the engine bay from the cabin. Exhaust gases don’t need a hole in the exhaust pipe if they can simply find an easier path around the firewall.
- Cable Grommets: Look at where clutch cables, wiring harnesses, or steering shafts pass through the metal firewall. If the rubber grommets are aged, cracked, or missing, these provide a direct pathway for fumes.
- HVAC Intake Location: If your fresh air intake for the cabin ventilation sits too close to the exhaust pipe exit, especially when idling, it will draw in exhaust.
4. Damaged Engine/Transmission Mounts
If engine or transmission mounts fail, excessive vibration can cause exhaust pipes or connections that were previously sealed correctly to shift or develop small leaks at flexible joints.
Troubleshooting Based on Detector Readings
The type of gas detected can give you clues about where the problem lies. This diagnostic shortcut helps you narrow down the search area before getting underneath the truck.
| Primary Gas High in Cab | Most Likely Source Area | Action Recommended |
|---|---|---|
| High $text{CO}$ and HCs ($text{Unburnt Fuel}$) | Severe immediate exhaust pipe breach or manifold failure. | Immediate inspection for major structural leaks. |
| High $text{NO}_x$ | EGR or DPF system malfunction allowing hot, chemically active gas escape. | Check upstream plumbing of the emissions control system. |
| High PM (Particulates/Soot) | A leak releasing raw soot before the DPF, or poor firewall sealing allowing soot migration. | Inspect physical seals and DPF assembly integrity. |
Safety First: When to Stop Driving
Your primary goal in measuring these substances is safety. If your portable monitor registers levels exceeding safe limits, you must immediately take action to prevent unnecessary exposure.
- Low Level Odor/Detection (Below OELs): Investigate during your next maintenance window. Ensure HVAC filters are clean and check firewall grommets.
- Modest Detection (Approaching OELs): Stop driving until a professional mechanic can inspect critical exhaust joints (manifold, turbo inlet/outlet). Switch HVAC to Recirculate mode temporarily if the smell is overwhelming.
- High Detection (Exceeding OELs): Pull over immediately in a safe location, turn off the engine, and ventilate the cab thoroughly. Do not continue operating the vehicle if you suspect dangerous levels of Carbon Monoxide. Contact a service facility.

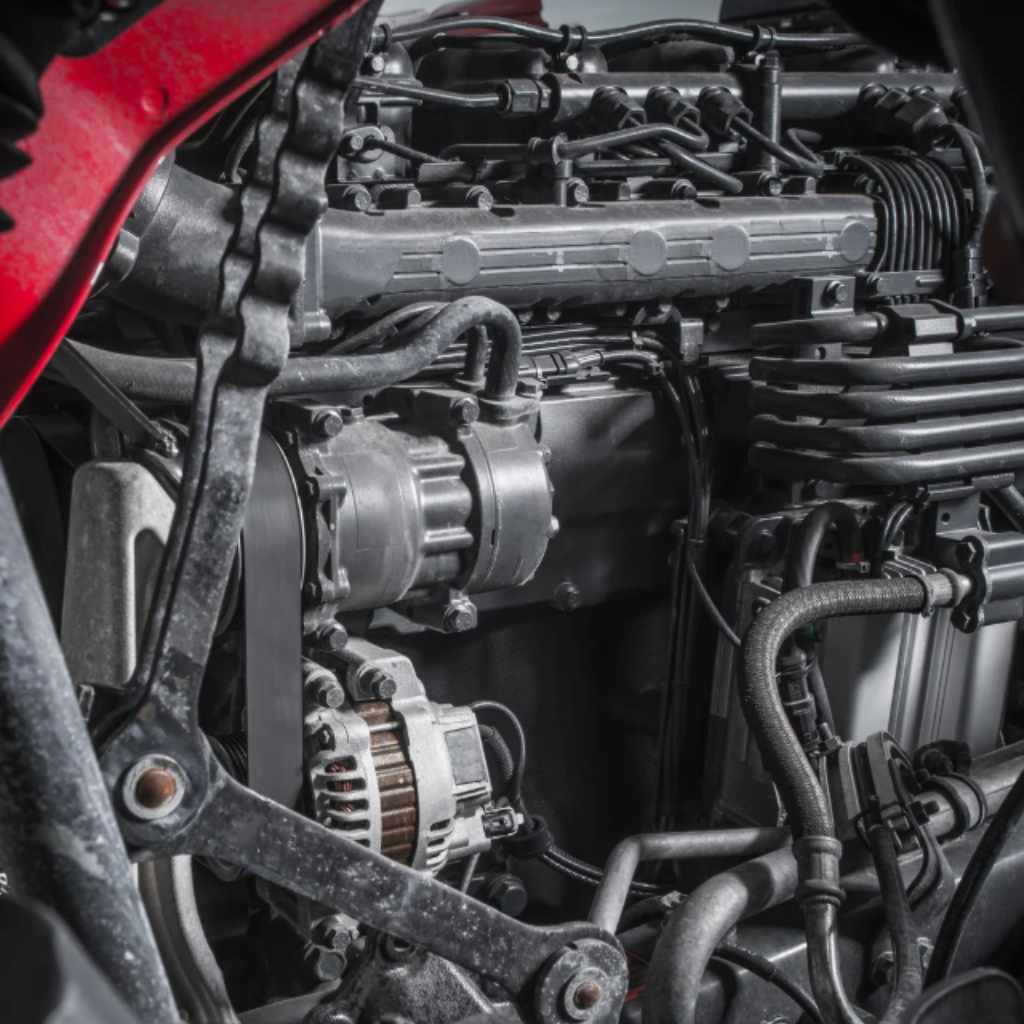

Advanced Considerations: Monitoring Modern Diesel Emission Systems
Modern EPA-compliant diesel engines (often called Tier 4, 5, or newer) have significantly cleaner exhaust outside the truck because of Diesel Oxidation Catalysts (DOC) and DPFs. However, this added complexity means there are more potential points where failure could introduce fumes into the cabin.
The Role of Sensors and Onboard Diagnostics (OBD)
Your truck’s main computer (ECU) relies on dozens of sensors ($NO_x$ sensors, DPF pressure sensors, temperature probes) to manage the emission system. If a leak occurs right after the engine—for instance, between the turbo and the DOC—the downstream sensors might not register the problem correctly, leading the ECU to think everything is fine, even while you are smelling fumes in the cab.
This is why relying solely on the “Check Engine Light” might not catch a fume infiltration issue. You are measuring a symptom (fumes in the cab), not the cause (engine performance code). This is precisely why physical measurement tools inside the cab are so valuable for diagnosing comfort and safety issues that the truck’s own internal diagnostics miss.
For further technical reading on emissions system integrity, resources provided by federal agencies offer deep dives into testing protocols, such as those outlined by the U.S. Department of Energy regarding vehicle efficiency and emissions control.
Frequently Asked Questions (FAQ) About Diesel Fume Measurement
Q1: Do I need special permits to buy or use a diesel exhaust gas detector?
Generally, no. Personal safety monitors designed for occupational use can be purchased over the counter by individuals, similar to buying a smoke detector. However, you must use them according to the manufacturer’s instructions for accurate results.
Q2: Is smelling diesel exhaust inside my truck only related to the engine?
Not always. While the engine is the main source, if the leak is extremely close to the cabin air intake (like a faulty air filter box seal near the exhaust manifold), the intake can pull in ambient air that happens to contain exhaust fumes from a nearby source, or even fumes leaking from a poorly sealed fuel line, though engine gases are the primary concern.
Q3: How often should I measure my cab air quality?
If you never smell anything, annual checks or spot checks during heavy use are fine. If you notice intermittent smells, measure immediately whenever the smell occurs. If you work in dusty environments or perform heavy towing, more frequent monitoring is wise.
Q4: Can I use a simple CO detector from my home in my truck cab?
It is strongly discouraged. Home CO detectors are typically designed to alarm for much higher concentrations over longer periods and may not accurately read the smaller, specific concentrations relevant to diesel $NO_x$ or the specific OELs for occupational exposure. Stick to commercial or industrial-grade portable gas monitors.
Q5: If I switch my truck’s HVAC to “Recirculate,” does that stop exhaust infiltration?
Yes, temporarily. Recirculating mode draws air from inside the cab, mixing it with a small amount of fresh air. This effectively blocks new exhaust from entering via the cowl intake. However, if exhaust is already leaking through the firewall or floorboards, recirculation won’t remove what is already inside.
Q6: If my readings are high, is the truck unsafe to drive to the mechanic?
If readings significantly exceed recommended occupational exposure limits (especially $CO$), the truck is unsafe to operate until the leak is fixed. If readings are slightly elevated, drive with the windows down slightly to increase air exchange until you can have the system inspected.
Conclusion: Taking Control of Your Cabin Air Quality
We’ve covered the essential steps: recognizing the danger, arming yourself with the right measurement tools, and implementing a testing strategy under various driving conditions. Monitoring diesel exhaust inside your truck cab is definitely achievable, moving you from simply guessing about a smell to having concrete data about your working environment’s safety. Remember, specialized gas monitors are your key to accurate, safe measurement. By taking these proactive steps, you are not just maintaining your vehicle; you are safeguarding your long-term health behind the wheel. Don’t wait for frequent headaches or persistent smells—invest in a good monitor, take those readings, and ensure that your time in the driver’s seat remains productive and, most importantly, healthy.
