Heat Shield vs Muffler Shield: What Is the Difference?
If the shield fits the muffler or catalytic converter can, it is a muffler shield; if it protects heat anywhere along the exhaust, it is a generic heat shield. Using the wrong term can point you to the wrong part, slow repairs, and leave a rattling or overheating exhaust problem unresolved. This guide separates function, placement, mounting, and the clues that distinguish them.

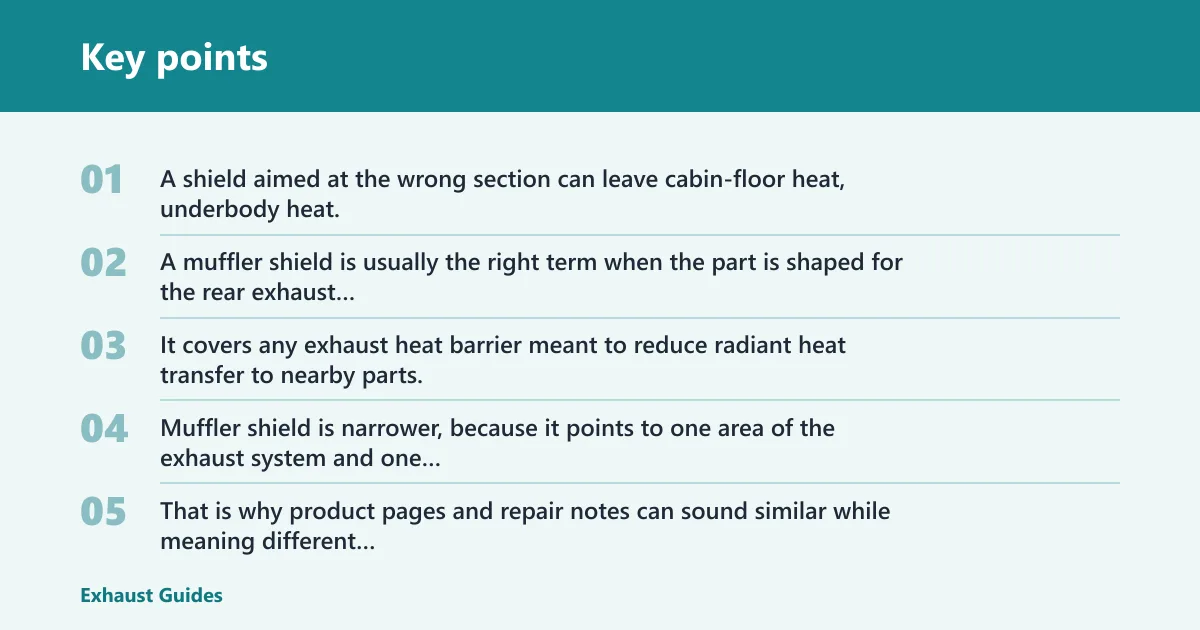

What is the real difference?
The core difference is scope. A heat shield is the broad category for parts that deflect exhaust heat away from the floorpan, undercarriage, and nearby components. A muffler shield is a location-specific heat shield built for the muffler or catalytic converter area, where exhaust heat runs high and clearance is tight.
That location detail matters. A shield aimed at the wrong section can leave cabin-floor heat, underbody heat, or nearby plastic parts exposed. A muffler shield is usually the right term when the part is shaped for the rear exhaust section or the converter area, while “heat shield” covers the wider family of exhaust heat barriers.
| Factor | Heat shield | muffler shield | Winner |
|---|---|---|---|
| Scope | Broad category for exhaust heat control anywhere along the system | Specific shield for the muffler or catalytic converter area | Heat shield |
| Placement | Can be used on underbody areas, floorpan zones, tunnels, and nearby components | Built to fit near the rear exhaust or converter canister | muffler shield |
| Main purpose | Deflect radiant heat away from vulnerable surfaces | Deflect radiant heat from the muffler or cat area and the undercarriage near it | Tie |
| Buying signal | Best when you need a general exhaust heat barrier | Best when the listing names muffler, cat, or the space between those parts | muffler shield |
| Risk of wrong pick | May be too generic for a tight rear-exhaust fitment | May miss the real heat source if the problem is elsewhere under the car | Tie |
Scope
Heat shield is the wider label. It covers any exhaust heat barrier meant to reduce radiant heat transfer to nearby parts. Muffler shield is narrower, because it points to one area of the exhaust system and one kind of fitment.
That is why product pages and repair notes can sound similar while meaning different things. One is a category. The other is a location-based subtype.
Placement
A muffler shield is generally placed near the muffler or catalytic converter area. A general heat shield can appear wherever exhaust heat reaches the cabin floor, tunnel, body panel, or underbody trim.
Say your floorboard feels hot after highway driving, but the exhaust source is forward of the rear axle. A generic heat shield may be the better term because the problem is not limited to the muffler can.
Main purpose
Both parts focus on radiant heat deflection. They are aimed at heat rays and hot surfaces, not at direct-contact insulation. That distinction matters because a shield can reduce heat soak while still leaving the source itself very hot.
Do not expect the part to cure every heat complaint. If the exhaust pipe is touching the body, a hanger issue or missing clearance may be the real fault.
Buying signal
The search term on the listing usually tells the story. A part labeled for the muffler or cat is usually built for that location, while “heat shield” alone may describe a broader universal or OEM underbody part.
Picture a universal barrier roll cut to size for a tunnel panel. That is a heat shield use case. A formed piece meant to sit by the converter is a muffler shield use case.
Risk of wrong pick
The wrong shield type can leave the complaint unresolved. If the hot spot is under the front seat and the shield is mounted at the rear muffler, the cabin heat remains.
That is the troubleshooting angle many listings skip. Match the part to the heat source, the location, and the surface that needs protection.
How does each one work?
Both parts work by reflecting radiant heat away from nearby surfaces. They do not stop the exhaust from making heat, and they do not replace clearance, insulation, or a proper hanger layout. The main job is to redirect heat before it reaches the undercarriage or floorpan.
When shielding does not solve the issue, look for a missing bracket, a dented pipe, a failed hanger, or a shield that is installed too far from the source. A heat barrier cannot fix physical contact between exhaust parts and the body.
Radiant heat is the target
Radiant heat travels through space from a hot exhaust component to a cooler surface. A shield gives that heat a reflective or resistant barrier so less energy reaches the floor and adjacent parts.
That is why shields are common around converters and mufflers. Those parts get hot enough to warm the body shell, especially when the vehicle has limited clearance.
When shielding does not fix the problem
If the floor still heats up after the shield is added, the issue may be beyond radiant transfer. Exhaust contact, missing insulation, damaged underbody trim, or a different heat source can all keep the cabin or cargo area hot.
A common first-timer mistake is ordering a muffler shield for a heat complaint that starts at a catalytic converter near the front tunnel. The label sounds close. The fitment is wrong.

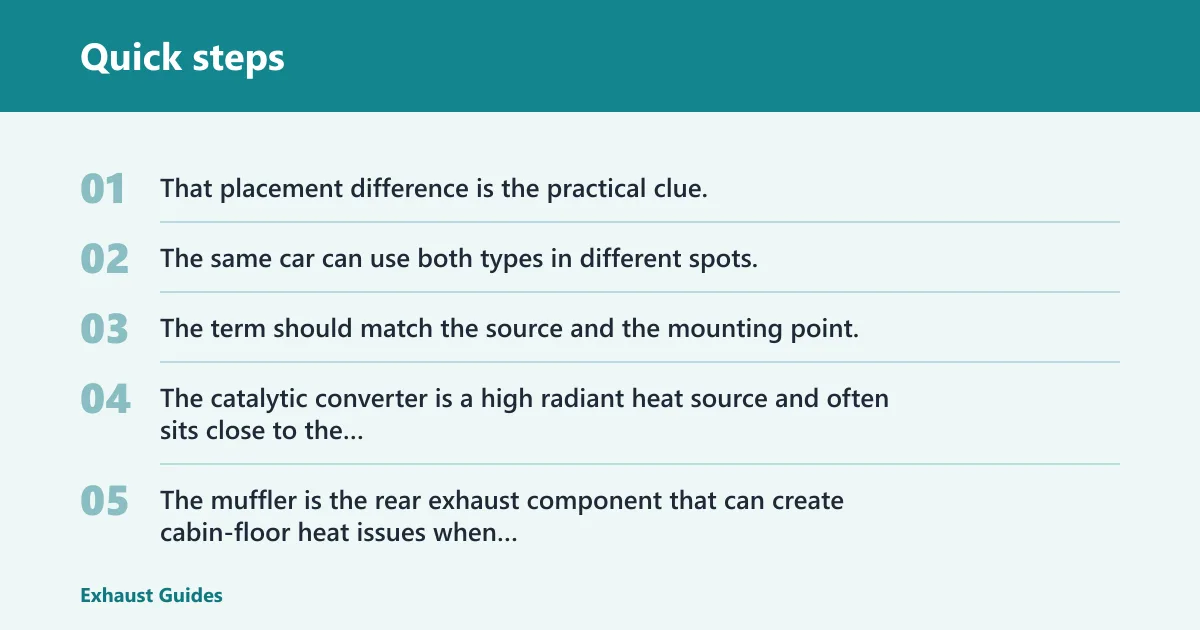

Where does each shield install?
A muffler or cat shield installs in the rear or mid-rear exhaust zone, often between the catalytic converter and muffler. A general heat shield can go under the floorpan, along the tunnel, near the firewall, or anywhere exhaust heat needs to be pushed away from the body.
That placement difference is the practical clue. The same car can use both types in different spots. The term should match the source and the mounting point.
Muffler and catalytic converter placement
The catalytic converter is a high radiant heat source and often sits close to the underbody. The muffler is the rear exhaust component that can create cabin-floor heat issues when shielding is missing or damaged.
A muffler shield is often specified for the space between those parts, or around the canister area itself. Thermo-Tec’s Muffler / Cat Heat Shield can be installed between the catalytic converter and muffler.
Undercarriage and floorpan coverage
General exhaust heat shields are used to protect the undercarriage and floorpan from radiant heat. That makes them useful when the hot zone is broad, when the body panel is the target, or when the shield must follow the vehicle’s original mounting pattern.
OEM underbody shields usually fit a shaped area and attach at known points. Universal heat barriers are looser in fit and better for custom coverage than for a formed replacement.
OEM underbody shields vs aftermarket parts
OEM-style shields tend to match one vehicle’s stamping, bracket layout, and heat path. Aftermarket muffler or cat shields are usually more specific about where they belong on the exhaust and what they are meant to guard.
That means the wrong terminology can mislead a repair order. A general underbody shield may be correct for a floorpan problem, while a muffler shield is better for the exhaust section right around the converter or muffler.

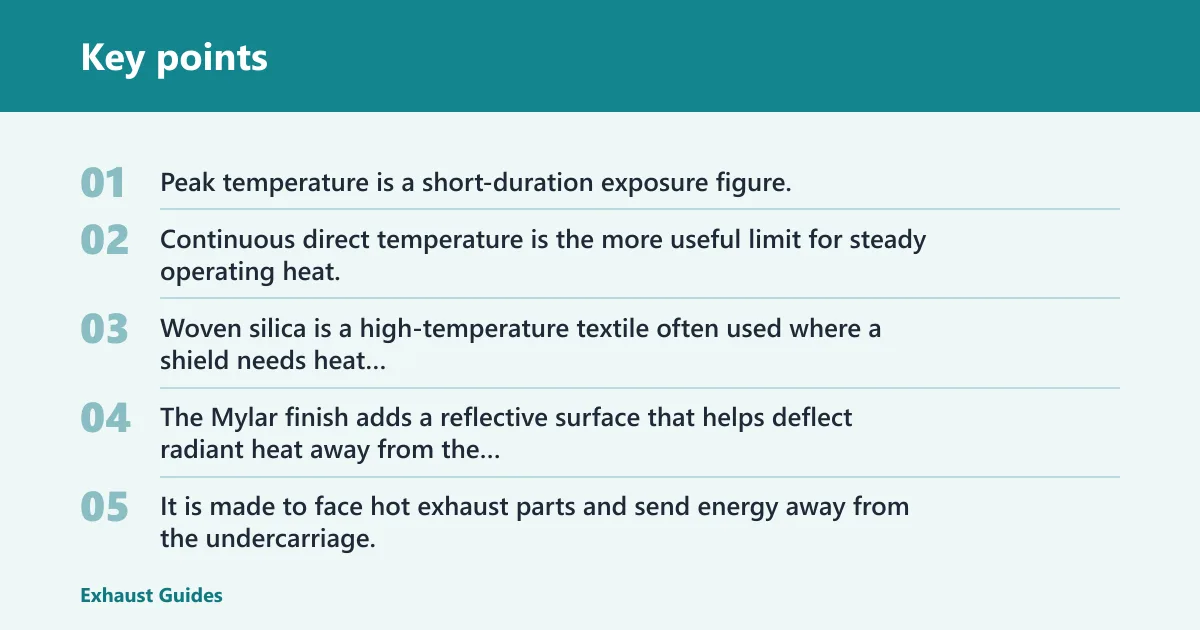

What materials and ratings matter?
Material and rating describe how the shield survives heat, not where it belongs. Thermo-Tec’s Muffler / Cat Heat Shield uses woven silica with a flexible Mylar finish, and it is labeled for up to 2000°F with a continuous direct temperature rating of 1100°F.
Those numbers are not the same claim. Peak temperature is a short-duration exposure figure. Continuous direct temperature is the more useful limit for steady operating heat.
Woven silica and Mylar finish
Woven silica is a high-temperature textile often used where a shield needs heat resistance and flexibility. The Mylar finish adds a reflective surface that helps deflect radiant heat away from the target area.
That construction fits the shield’s job. It is made to face hot exhaust parts and send energy away from the undercarriage, not to act like a thick insulating pad.
Direct temperature rating vs peak temperature rating
A continuous direct rating tells you what the material can tolerate while it is exposed to heat over time. Thermo-Tec lists 1100°F for continuous direct temperature on this shield.
A peak rating covers a short burst. The same source lists 2000°F capability, which should be read as brief exposure rather than an everyday operating limit.
Fasteners and mounting hardware
Secure installation depends on the mounting method. The same source says the kit includes all necessary fasteners for installation, which matters because a loose shield can rattle, move, or lose contact with its intended mounting points.
If the hardware is missing, corroded, or wrong for the body panel, the shield may not stay aligned with the heat source. Mounting is part of performance, not an afterthought.
Choose Heat shield if… / Choose muffler shield if…
Choose Heat shield if the complaint is broad underbody heat, if the heat source is not limited to the rear exhaust canisters, or if you are replacing an OEM-style underbody barrier. Choose muffler shield if the issue is centered on the muffler or catalytic converter area, especially when the part is formed for that location or listed for the space between those components.
- Choose Heat shield if you need a general exhaust heat barrier for the floorpan, tunnel, or underbody.
- Choose Heat shield if the shield must match an OEM mounting pattern or a broader body-panel coverage area.
- Choose muffler shield if the hot spot is at the muffler or catalytic converter and the listing names that area.
- Choose muffler shield if you need a formed part with kit-specific fasteners for a rear-exhaust fitment.
- Choose neither if the real issue is pipe contact, a missing hanger, or another heat source that is not the exhaust shield itself.
- Identify the hottest area under the car.
- Check whether the source is the muffler, catalytic converter, or a wider underbody zone.
- Match the shield term to that location.
- Confirm the mounting method and included fasteners.
- Separate radiant heat control from direct-contact fixes.
Suppose a sedan has heat at the rear footwell after the muffler shield rusts through. A muffler shield is the better term and likely the better part. Suppose the heat source is under the center tunnel near the converter, but the rear exhaust is fine. A general heat shield fits the problem better.
Frequently asked questions
What is the difference between a heat shield and a muffler shield?
A heat shield is the broad category for exhaust heat barriers. A muffler shield is a location-specific type made for the muffler or catalytic converter area. If the fitment is tied to the rear exhaust canisters, use the narrower term. If the coverage is broader, use the general term.
Is a muffler shield just another name for a heat shield?
Not exactly. The terms overlap, because both manage exhaust heat, but muffler shield points to placement and fitment. Heat shield is the wider label. Using them as perfect synonyms can hide the difference between a general underbody barrier and a part shaped for the muffler or cat area.
Where does a muffler / cat heat shield install on the exhaust?
It usually installs near the muffler or catalytic converter, often between those components or close to the canister that radiates the most heat. That placement is why the part is named for those areas. It is not meant to cover every exhaust heat source on the vehicle.
What temperatures can an exhaust heat shield handle?
For the Thermo-Tec example, the shield is rated for continuous direct temperatures of 1100°F and can withstand temperatures up to 2000°F in short-duration exposure. Those are different claims. Continuous direct temperature is the more useful number for steady heat near the exhaust.
Can a heat shield be installed between the catalytic converter and muffler?
Yes, if the part is built for that location. The same source lists its Muffler / Cat Heat Shield as installable between the catalytic converter and muffler. The key is fitment. A general heat shield may not be shaped or mounted for that specific gap.
Do heat shields reduce radiant heat under the car?
Yes. That is their main function. They send radiant heat away from the undercarriage, floorpan, and nearby parts. They do not stop the exhaust from getting hot, and they do not fix direct contact, but they can reduce heat transfer to the body.
What material is a muffler heat shield usually made from?
Materials vary, but the Thermo-Tec shield uses woven silica with a flexible Mylar finish. That combination gives the part high-temperature textile strength and a reflective surface for radiant heat deflection. Other products may use different high-temp materials, but the job is the same.
Does a muffler shield protect the undercarriage or also reduce noise?
Its main job is undercarriage heat protection. Noise reduction is not the primary purpose. If a shield also changes sound, that is secondary. For diagnosis, focus on heat deflection, mounting, and fitment before expecting any meaningful change in exhaust noise.
